Overview

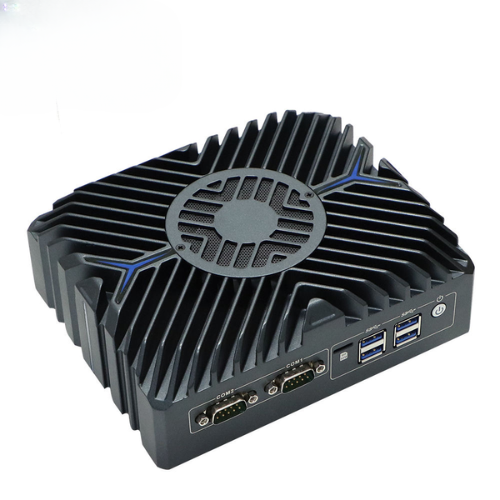

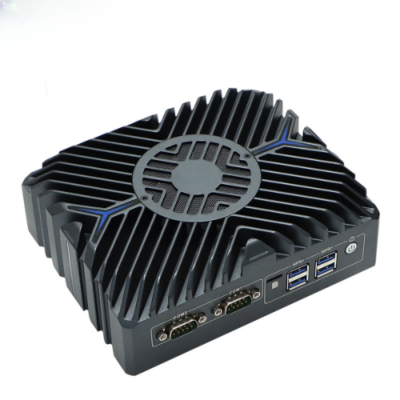

Asset Track Pro’s 12th Gen Fanless Mini PC with 2.5G LAN and DDR5 Support is equipped with the latest 12th Gen Intel Core i3-1215U processor, offering improved performance and efficiency for demanding applications. With three HDMI ports, users can connect up to three displays simultaneously, making it ideal for multi-monitor setups and applications that require multiple screens. This mini PC features three Intel I225-V 2.5G LAN ports, ensuring fast and reliable network connectivity, as well as four USB 3.1 ports for connecting peripherals and storage devices. With a power consumption of just 15W, this mini PC is designed to be energy-efficient and can be powered by a single USB-C port, making it perfect for use in retail, vending, or kiosk applications. 12th Gen Fanless Mini PC with 2.5G LAN and DDR5 Support supports up to 32GB of DDR5 memory and has three M.2 slots for storage expansion, allowing users to customize and upgrade their system to meet their specific needs.
Technical Specifications
| Case Color | Metallic Black (Customizable) |
| Material | High-quality all-aluminum, fanless efficient heat dissipation |
| Processor | Intel Core i3-1215U (6 cores, 8 threads, Turbo 4.4 GHz) Intel Core i5-1235U (10 cores, 12 threads, Turbo 4.4 GHz) Intel Core i7-1255U (10 cores, 12 threads, Turbo 4.7 GHz) |
| BIOS | AMI EFI BIOS |
| Memory | 1 x DDR5 4800 SODIMM memory slot, Max 32 GB |
| Storage | 1 x M.2 2280 Slot 1 x 2.5” HDD or SSD |
| Display Chip | Intel UHD Graphics |
| Display Interface | 3 x HD with 4K, supports synchronous or asynchronous display Max resolution: 4096×2160 @ 60Hz |

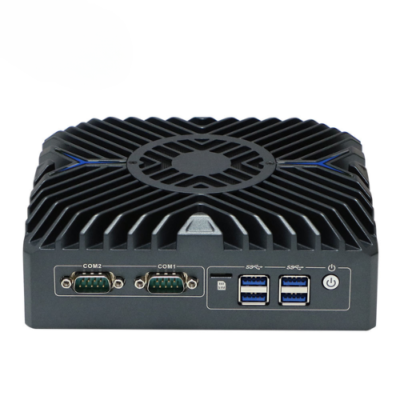

| Front I/O | 2 x COM (RS232/RS485), 1 x SIM slot, 4 x USB 3.1, 1 x Power button |
| Rear I/O | 1 x DC port, 3 x HD, 3 x Intel 2.5G LAN, 1 x audio interface (2-in-1), 4 antenna holes |
| Expansion Slots | 1 x M.2 2280 M-Key slot (NVME) 1 x M.2 3052 B-Key slot (USB 3.0, supports 4G/5G) External SIM card slot 1 x M.2 2230 E-Key slot (supports WiFi, BT) |
| Network | 3 x Intel i225-V 2.5G LAN |
| Other Functions | Auto power on Timing boot Wake on LAN PXE boot Watchdog (0–255 Level) TPM 2.0 security encryption |
| Power Supply | DC 12V |
| Applications | Industrial Control, Industrial Automation, Robotics, IoT Gateway, Edge Computing, Machine Vision, AGV/ARM, etc. |
| Operating Temperature | 32°F to 104°F (0°C to +40°C) (Commercial HDD) -4°F to 122°F (-20°C to +50°C) (Industrial SSD), Surface air flow |
| Operating Humidity | 5% to 95% non-condensing |
| Dimensions | 6.69 in × 5.51 in × 2.28 in (170 mm x 140 mm x 58 mm) |
| Weight | 2.43 lb (1.1 kg) |
