Description
Overview

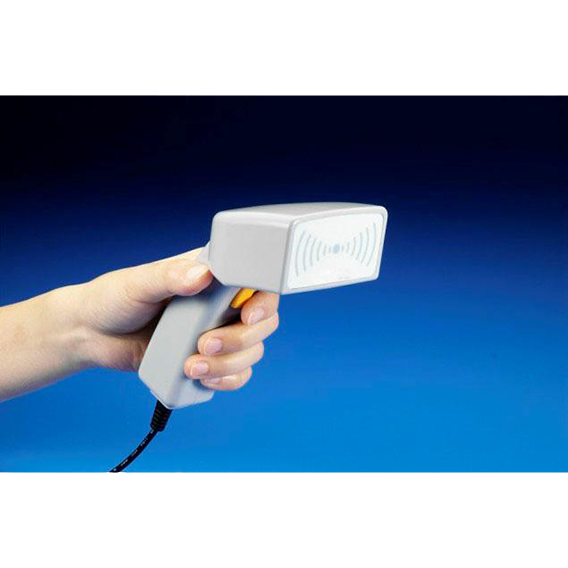

The 13.56 MHz handheld label reader reads/writes ISO15693 compliant smart labels at a maximum read distance of up to 50 mm and can operate as a configurable block reader.
Key Features
- USB interface (standard) or USB keyboard emulation (optional)
- ISO/IEC 15693 compatible
- Handheld and compact
Technical Specifications
| Power Requirements | 5 Volts regulated DC at 150 mA . Typical with a 9 V supply A linear regulator is recommended. |
| Interface | USB Interface (Standard) USB keyboard emulation (Optional) |
| Smart Labels | Tag-It HF-I, I-CODE SL2 based on ISO15693 compliant |
| Maximum Reading Distance | Up to 50 mm at 12 V with ISO15693 standard smart labels in ideal conditions |
| Frequency | 13.56 MHz |
| Supply Voltage | 5 V DC |
| Supply Current | Standby: 70 mA Trigger: 80 mA |
| Operating Temperature | 0 °C to 60 °C |
| Housing Material | ABS |
Product Brochure
Download the brochure for this product.
