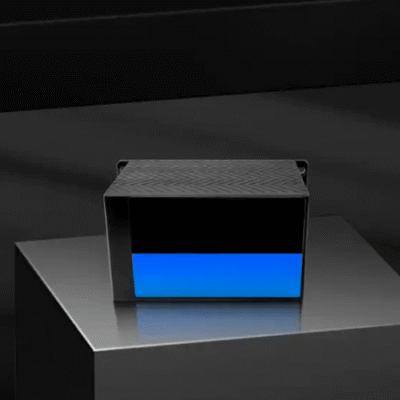

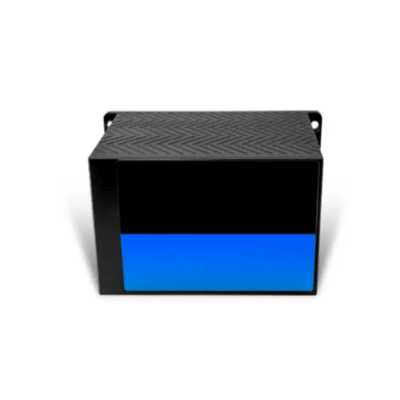

32-Channel LiDAR, 120° FOV, 905nm Wavelength, 2cm Accuracy
32-Channel LiDAR, 120° FOV, 905nm Wavelength, 2cm Accuracy - Image 2
32-Channel LiDAR, 120° FOV, 905nm Wavelength, 2cm Accuracy - Image 3

32-Channel LiDAR, 120° FOV, 905nm Wavelength, 2cm Accuracy

32-channel LiDAR sensor with 120° horizontal FOV, 2 cm accuracy, and 905 nm wavelength. Operates at 5-20 Hz, with a 9-36 V power range and rugged design

SKU: ATPLDS-171 Category:

Description

Features

  • Long measurement distance, high measurement accuracy, high horizontal resolution
  • Vehicle design standards, stable structure, lower power consumption
  • Easier to mass produce and cost-effective



Technical Specifications

Scan Channel 32
Wavelength 905 nm
Accuracy 2 cm
Scanning Frequency 5Hz, 10Hz, 20Hz
Horizontal Field of View 120 º
Vertical Field of View -6.67 º to 4.58 º
Power Supply Range 9 V to 36 V
Power Consumption 100 W
Shock 500m/ sec2, 3G rms
Temperature -4 ºF to 149 ºF (-20 ºC to 60 ºC)
Size 6.1 in x 4.2 in x 3.5 in (155 mm x 107.5 mm x 90 mm)
Weight 3.3 lb (1.5 kg)

Description

Features

  • Long measurement distance, high measurement accuracy, high horizontal resolution
  • Vehicle design standards, stable structure, lower power consumption
  • Easier to mass produce and cost-effective



Technical Specifications

Scan Channel 32
Wavelength 905 nm
Accuracy 2 cm
Scanning Frequency 5Hz, 10Hz, 20Hz
Horizontal Field of View 120 º
Vertical Field of View -6.67 º to 4.58 º
Power Supply Range 9 V to 36 V
Power Consumption 100 W
Shock 500m/ sec2, 3G rms
Temperature -4 ºF to 149 ºF (-20 ºC to 60 ºC)
Size 6.1 in x 4.2 in x 3.5 in (155 mm x 107.5 mm x 90 mm)
Weight 3.3 lb (1.5 kg)
