Description
Overview

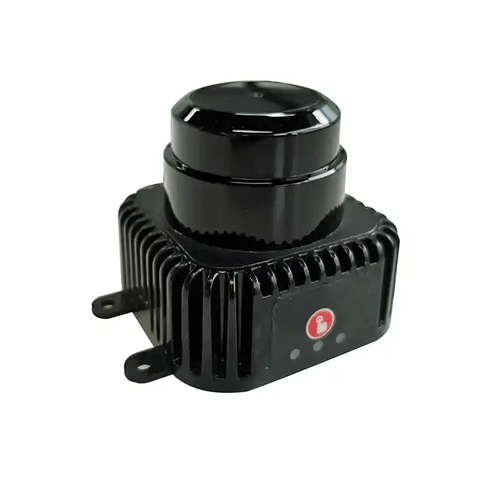

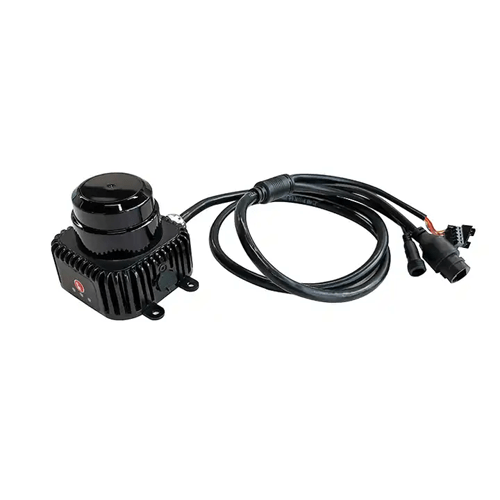

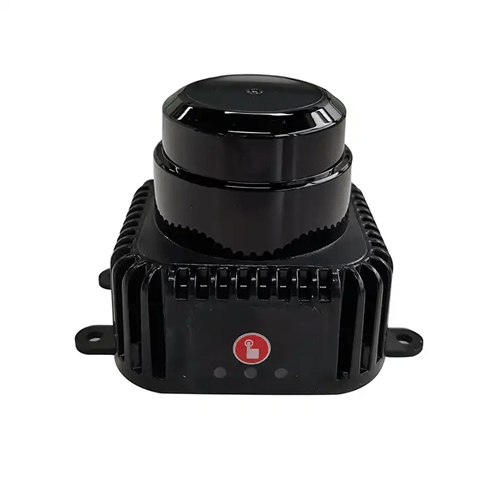

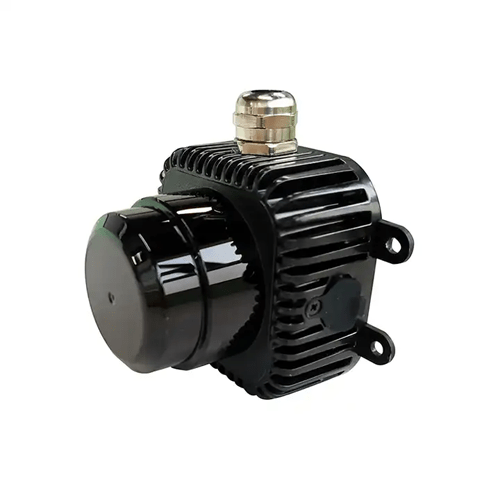

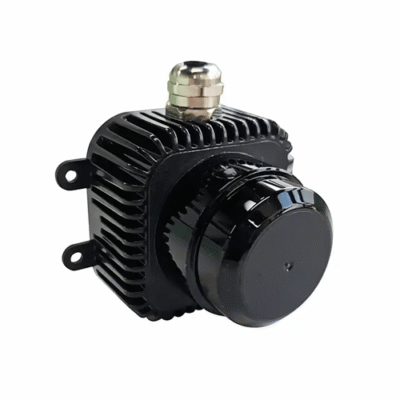

Asset Track Pro obstacle avoidance lidar sensor is a cost-effective two-dimensional pulsed lidar, which uses a pulsed laser to emit a single laser pulse to the target and calculates and processes the round-trip time by receiving the laser pulse echo diffusely reflected from the target. Send the distance data and angle information of its calculation target to other devices through the serial port. It has a high-speed laser ranging sampling capability up to 16,000 times per second. And with the optical and magnetic fusion technology, it overcomes the life limitation of traditional lidar and can operate reliably and stably for a long time.
Technical Specifications
| Supply voltage | DC10V to DC26V |
| Power consumption | ≤4W |
| Detecting range | 3.39 in to 1574.8 in (0.1 m to 40 m) |
| Ranging accuracy | 1.96 in (5cm) |
| Ranging resolution | 0.39 in (10mm) |
| Laser sampling rate | 20KHZ（20000HZ） |
| Response time | 50 MS to 70 MS |
| Angle resolution | 0.09 degree to 0.27 degree |
| Scanning angle | 0 degree to 360 degree |
| Laser horizontal parallelism | ±0.3 degree |
| Laser wavelength | λ = 905nm |
| Working temperature | 14 °F to 122 °F (-10 ℃ to +50 ℃) |
| Weight | 0.72 lb (330 g) |
| Dimension | 3.46 in x 2.67 in x 2.32 in (88 mm x 68 mm x 59 mm） |
