Description

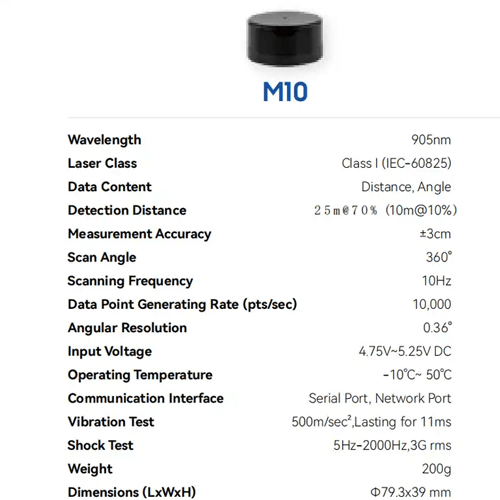

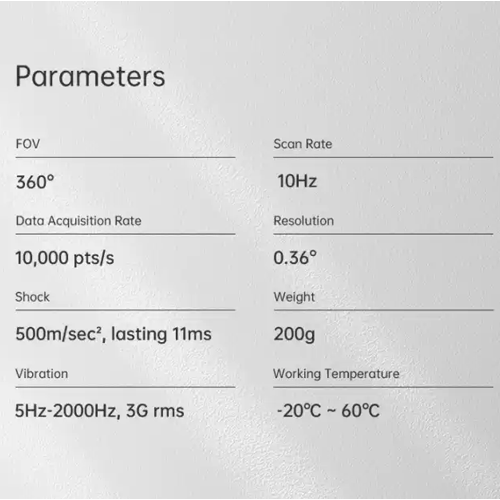

Technical Specifications
| Wavelength | 905 nm |
| Laser Class | Class I (IEC-60825) |
| Data Content | Distance, Angle |
| Detection Distance | 82.02 ft 70% (32.81 ft 10%), (25 m 70% (10 m 10%)) |
| Measurement Accuracy | ±1.81 in (3 cm) |
| Scan Angle | 360° |
| Scanning Frequency | 10 Hz |
| Data Point Generating Rate | 10,000 pts/sect |
| Angular Resolution | 0.36° |
| Input Voltage | 4.75 V to 5.25 V DC |
| Communication Interface | Serial Port, Network Port |
| Vibration Test | 500 m/sec², Lasting for 11 ms |
| Shock Test | 5 Hz to 2000 Hz, 3 Grms |
| Operating Temperature | 14 ℉ to 122 ℉ (-10 ℃ to 50 ℃) |
| Dimensions | 3.12 in x 1.54 in (79.3 mm x 39 mm) |
| Weight | 0.44 lb (200 g) |
