Description
Overview

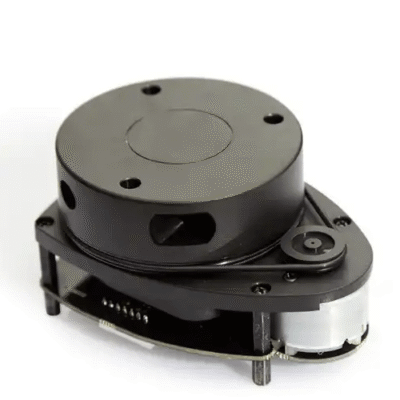

Asset Track Pro scanning radius LiDAR sensor is a low cost 360-degree 2D laser scanner (LIDAR). The system can perform 360-degree scan within 19.69 ft range. The produced 2D point cloud data can be used in mapping, localization and object or environment modeling. Its scanning frequency reached 5.5 Hz when sampling 360 points each round. And it can be configured up to 10 Hz maximum. It is basically a laser triangulation measurement system. It can work excellently in all kinds of indoor and outdoor environments without sunlight.
Features
- Measures distance data in more than 8000 times per s

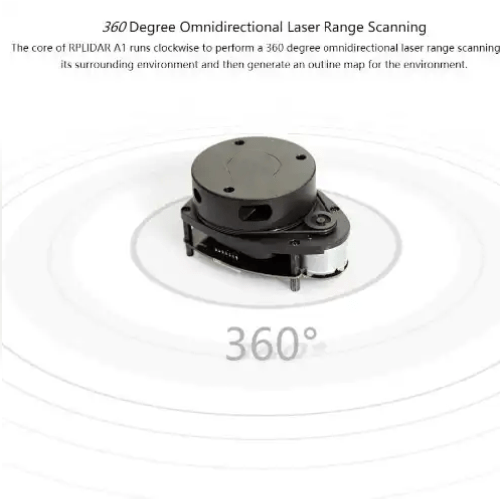

- 360 Degree Omnidirectional Laser Range Scanning
- 8000 times sample rate, highest in the current economical LIDAR industry
- OPTMAG Original Design, prolong the lifespan
- Configurable Scan Rate from 2 Hz to 10Hz
- Ideal for Robot Navigation and Localization
- Plug and Play
Technical Specifications
| Measurement range | Typ. 0.49 ft to 39.37 ft (0.15 m to 12 m) |
| Scanning angle | 0° to 360° |
| Ranging resolution | <0.02 in (0.5 mm), 1% actual range |
| Angular resolution | ≤ 1° |
| Singular ranging time | 0.25 MS |
| Measured frequency | 2000 Hz to 8000 Hz, Typ. ≥4000 Hz |
| Scanning frequency | 1 Hz to 10 Hz, Typ. 5.5 Hz |
| Size | 2.76 in x 3.88 in x 2.36 in (70 mm x 98.5 mm x 60 mm) |
| Net weight | 0.37 lb (170 g) |
