Description
Overview

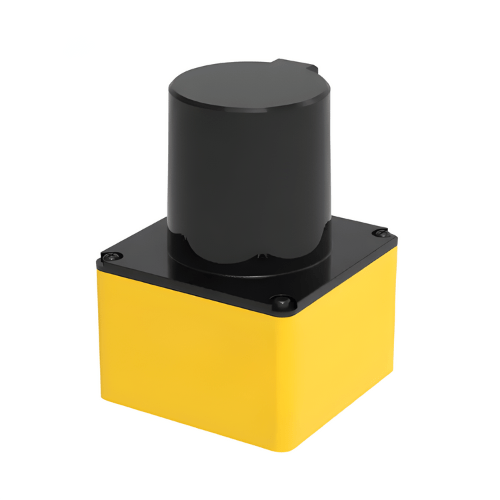

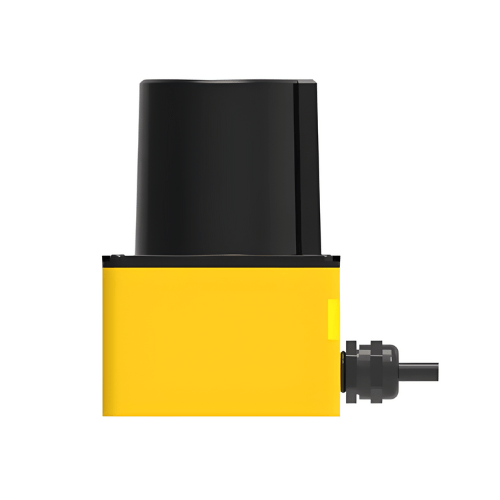

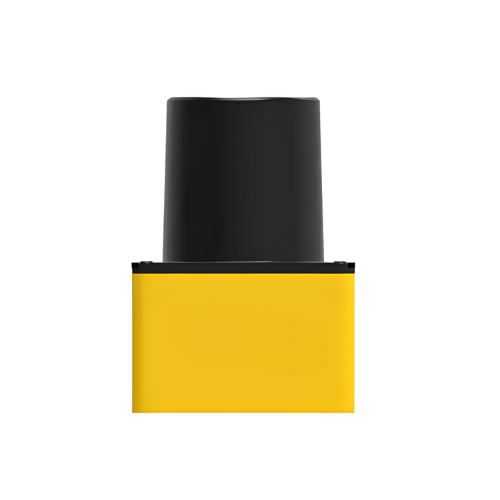

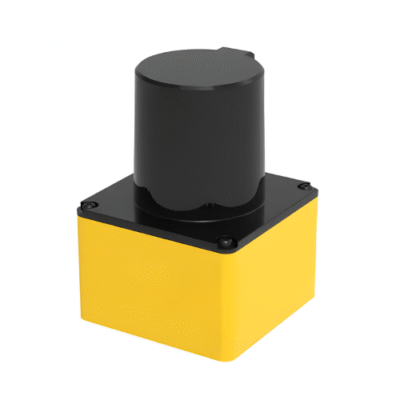

Asset Track Pro lidar scanner sensor helps avoid collision between the bridge feet and other objects on the aisle, helping crane operators monitor the forward path and cross path. The collision avoidance system monitors the entire area behind the stacker day and night. If an object enters the object enters the pre-set warning zone, the Lidar will provide the operator with an audible and visual warning signal.
Technical Specifications
| Light source | Infra-red(905nm) |
| Theory | TOP Principle |
| Sensing Distance | 784.40 in (20 m) |
| Scanning angle range | 270° |
| Scanning frequency | 30 Hz |
| Scanning angle resolution | 0.12°/0.18°/0.23°/0.35° |
| Sensing range with 70% reflection | 3.93 in to 784.40 in (0.1 m to 20 m) |
| Sensing range with 10% reflection | 3.93 in to 393.70 in (0.1 m to 10 m) |
| Function | Navigation |
| Working environment | indoor |
| Communication | Ethernet |
| Working voltage | DC 12 V |
| Power consumption | 5 W |
| Working temperature | -4 °F to 140 °F (-20 ℃ to 60 ℃) |
| Storage temperature | -4 °F to 158 °F (-20 ℃ to 70 ℃) |
| Weight | 0.55 lb (250 g) |
| Dimension | 2.36 in x 2.36 in x 3.34 in (60 mm × 60 mm × 84.9 mm) |
