Description
Overview

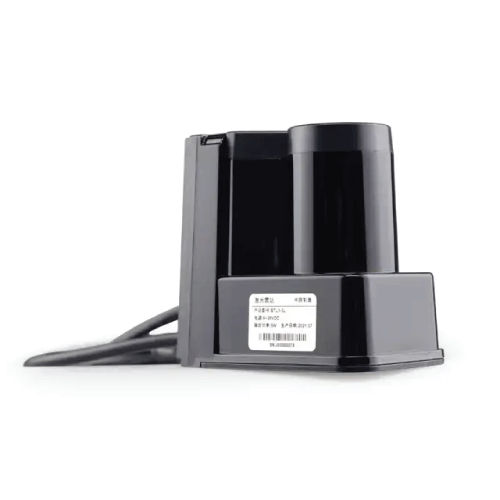

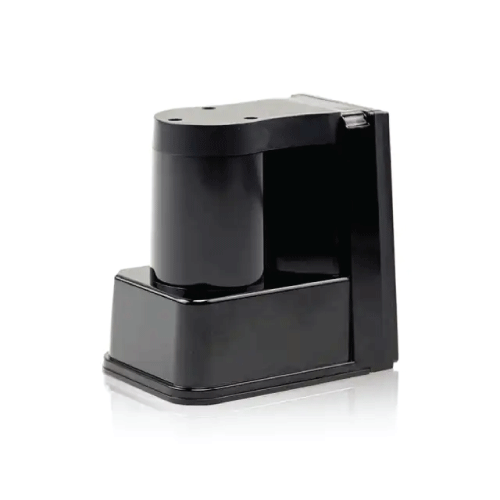

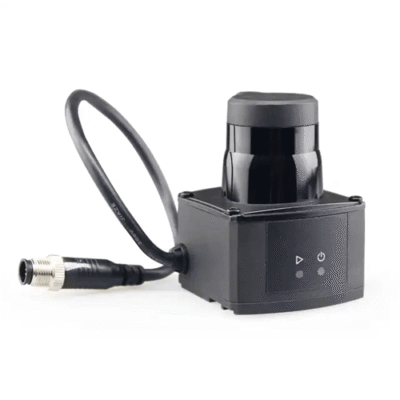

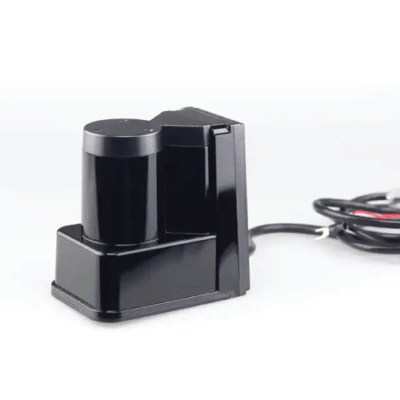

Asset Track Pro LiDAR sensor 3D based on TOF (Time of Flight) technology, which can match better with small space conditions. It can be used in fields of indoor robot navigation, route planning, contour detection and security. The product uses infrared invisible pulse laser with meeting the safety requirements of CLASS 1 human eyes and has the characteristics of smaller size, lower power consumption and easier installation.
Features
- Ranging method based on TOF
- 270° detection for object distance and angle
- Detection ranges up to 20 m
- Small size
- Wide voltage supply range
- 86400 points per second
- Customizable data format
Technical Specifications
| Voltage – Input | 9 V to 28 V DC |
| Application | Robot navigation AGV route planning and Security |
| Operating Wavelength | 905 nm |
| Scanning angle | 270° |
| Range Accuracy | ±0.787 in (±0.02 m) |
| Angle resolution | 0.25° |
| Measuring rate | 86400 Hz |
| Scanning rate | 20 Hz |
| Interface | Enternet |
| Operating voltage | 9 V to 28 V DC |
| Enclosure rating | IP 65 |
