Description
Overview
Asset Track Pro android 125 khz rfid tag reader and writer RFID card reader cost rfid tags and reader price low profile, high-performance 4-port RFID reader designed for both indoor and outdoor applications. Adopt Impinj IndyR2000 chip, with high-performance multi-tag identification algorithms. OP-401 has built-in Linux operating system, which not only meets the complex customer business requirements, but also responds to various label operations independently and quickly. Multi-tag reading performance is excellent, supporting intensive reading, large capacity tag reading and writing, received signal strength detection (RSSI). It has reliable net protocols andity, supports a variety of network protocols, and is easy to deploy large-scale applications.
Technical Specifications

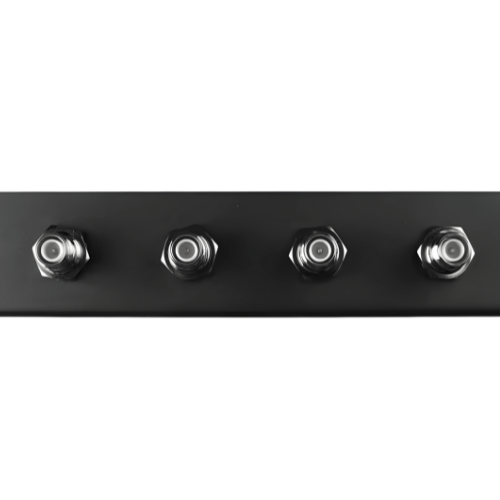

| RF Connector | 4 RP TNC antenna connectors |
| Protocol | ISO 18000-6C |
| Frequency | 865 MHz to 868MHz or 902 MHz or 928 MHz
Can be adjusted according to different countries or regions |
| Frequency Modulation | FHSS or fixed frequency, can be set by software |
| RF Output | from 0 dBm to 33 dBm x with + or – 1 dBm |
| Reading Distance | 9 dbi Antenna configuration
typical read range 49 ft to 82 ft (15 m to 25 m depends on tag) |
| Peak Inventory Speed | > 700 tags sec |
| Tag Buffer Size | 100,000tags @ 96-bit EPC |
| Tag RSSI | Supported |
| Antenna Detector | Supported |
| Working Mode | the principal and subordinate mode offline working mode Trigger mode |
| Power | With 220 V AC input the output of + 12 V or 5A DC power converter |

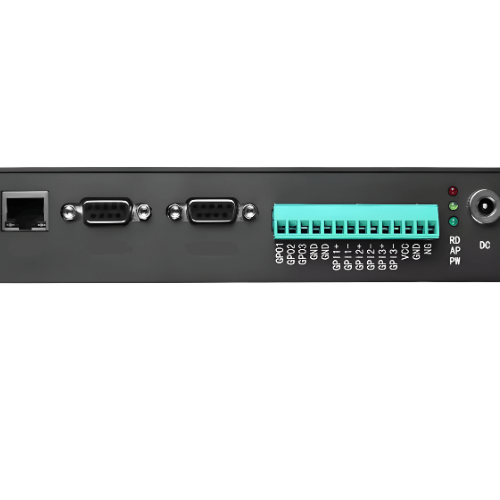

| Input And Output (GPIO) | 3 inputs 3 outputs (4 inputs 8 outputs optional) |
| Communication Interface | (32.89 ft to 328.84 ft)10 M or 100 M Adaptive Ethernet RS 232 |
| Operating System | Linux |
| Humidity | 5 % to 95 % RH Noncondensing |
| Operating Temp | 10 °F to 122 °F (- 20 °C to + 55 ℃) |
| Storage Temp | 10 °F to 152 °F – 20 °C to + 85 ℃) |
| Dimension | 8.16 in x 5.90 in x 1.49 in (215 mm x 150 mm x 38 mm) |
| Weight | 0.11 lb (0.05KG) |
