Description
Overview

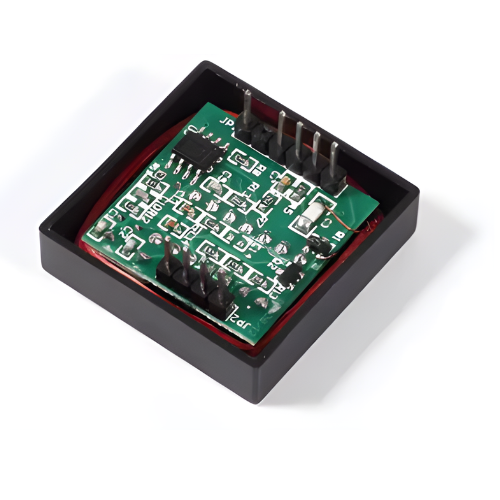

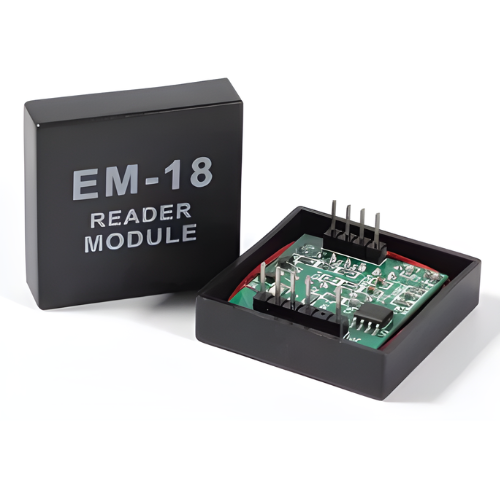

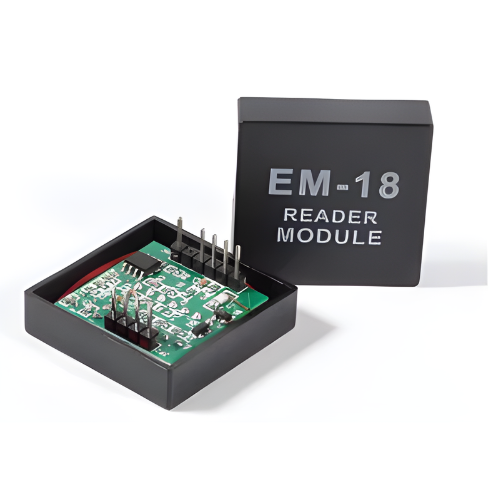

RFID Reader 125 KHz, TK 4100, ISO 78114 or 115, 0.32 ft range, RS 232 or WG 26 output for Windows, Android, Linux. Size 32 mm x 32 mm x 8 mm.
Technical Specifications
| Frequency | 125 KHz |
| Type | TK 4100 |
| Protocol | ISO 78114 or 115 |
| Read Distance | 0.32 ft (10 cm) |
| Card Format | EM 4100 or Compatible |
| Output | RS 232 and WG 26 |
| Material | ABS |
| Encoding | Manchester 64 bit modulus 64 |
| Power Requirement | 5 V DC and 60 mA nominal |
| Voltage Supply Range | +4.6 V to +5.4 V |
| Applicable Platform | Windows Android Linux |

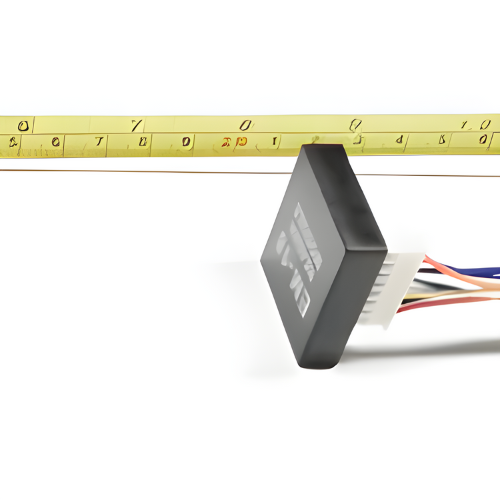

| Size | 1.25 in x 1.25 inches × 0.31 in (32 mm x 32 mm x 8 mm) |
