Description
Overview

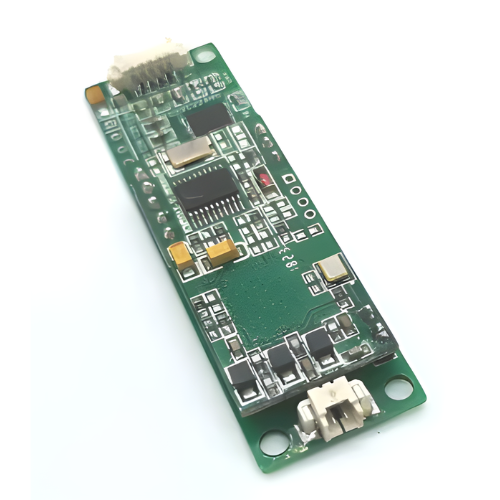

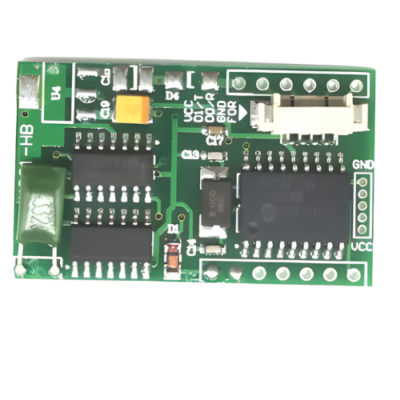

Asset Track Pro 125 KHz RFID Reader Metal Pin Connection Module is a 125 KHz read-only module for EM 4100 or TK 4100 125 KHz cards, which can read and output CSN card number. It has the option of Wiegand 26 or RS 232 and TTL output format.
Features
- 125 KHz Operating Frequency
- Available to be embedded into individual items
- Read CSN card number only
- Different output formats
Technical Specifications
| Frequency | 125 KHz |
| Protocol | ISO 14443 A or B, ISO 15693 and ISO 18092 |
| Interface | USB, Serial Port, RS 232 or RS 485 or WG-26 or WG-34 |
| Protection Level | IP 65 |
| Connection | metal PIN connection |
| Interface Option | WG-26 or WG-34 TLL USB |
| Support Chips | EM 4200, TK 4100, T 5577, EM 4305, NFC, UL |
| Power Supply | 3.3 V or 5 V |
| Reading Distance | > 0.03 ft (8 cm) |

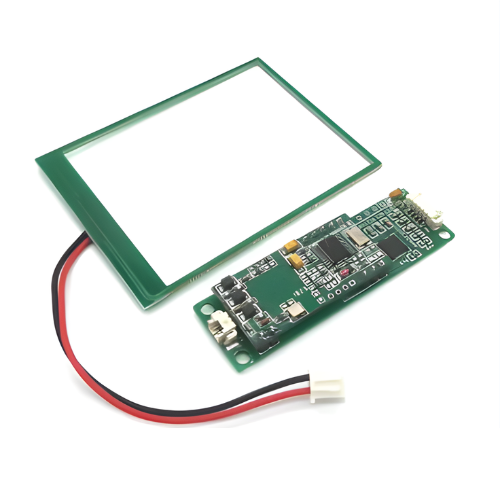

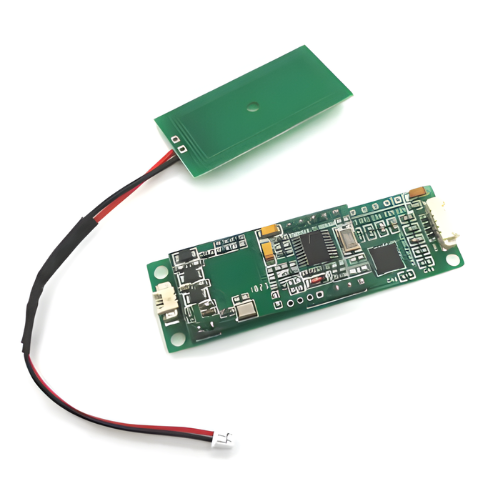

| Antenna | external, different size for option |
| Reading Range | 0 ft to 0.03 ft (0 cm to 8 cm) |
| Read or Write | Read UID only |
| Supporting Card | EM 4100 TK 4200 EM 4200 Card |
| Application | Table PC Lift control POS terminal Access control Attendance application Recreational Machine Barrier gate or apid-open gate Advertising tablet PC Medical Electronic Equipment Identification card scanner Smart game equipment Hand-held intelligent terminal POS consumption endpoint |
| Operating Temperature | 14 °F to 158 °F (-10 °C to 70 °C) |
| Size | 1.54 in X 0.75 in X 0.35 in (39 mm X 19 mm X 9 mm) |
