Description
Overview

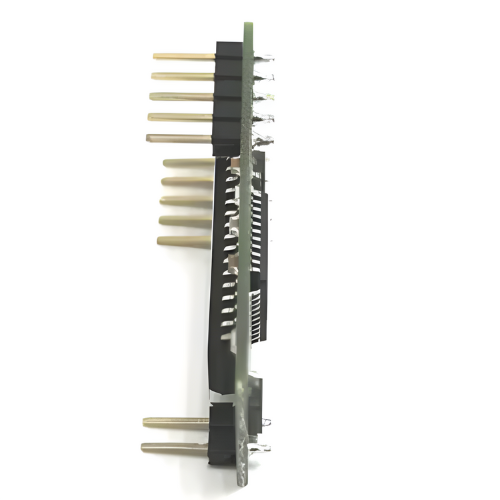

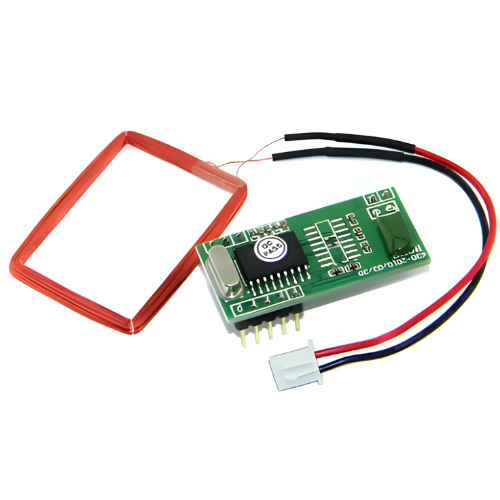

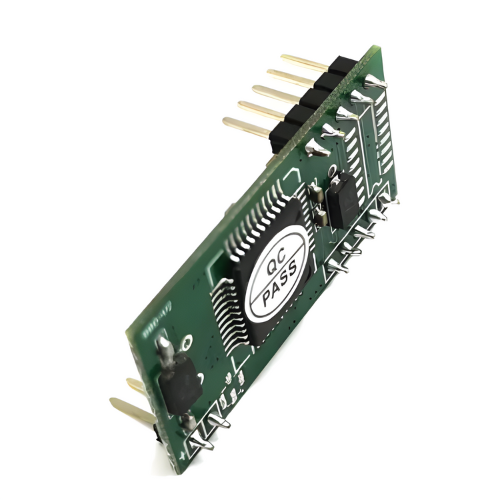

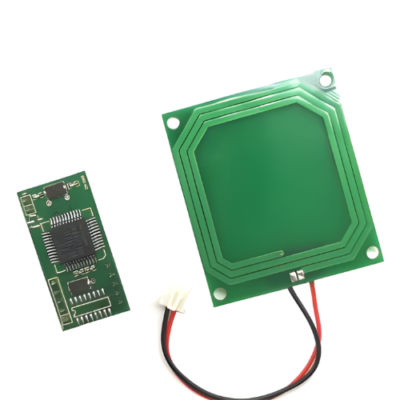

Asset Track Pro 125 KHz RFID Reader Module for Access Control is a 125 KHz read-only module for EM 4100 or TK 4100 125 KHz cards, which can read and output CSN card number. It has the option of Wiegand 26 or RS 232 and TTL output format.
Features
- 125 KHz Operating Frequency
- Available to be embedded into individual items
- Read CSN card number only
- Different output formats
Technical Specifications
| Frequency | 125 KHz |
| Type | RFID Module |
| Protocol | ISO 14443 A or B, ISO 15693 and ISO 18092 |
| Interface | Wiegand 26 TTL RS 232 |
| Support Chips | EM 4200, TK 4100, T 5577, EM 4305, NFC and UL |
| Protection Level | IP 65 |
| Connection | metal PIN connection |
| Interface Option | WG-26 or WG-34 TLL USB |
| Power Supply | 3.3 V or 5 V |
| Card Reading Distance | > 0.03 ft (8 cm) |
| Antenna | External, different size for option |
| Reading Range | 0 ft to 0.03 ft (0 cm to 8 cm) |
| Read or Write | read UID only |
| Supporting Card | EM 4100 TK 4200 EM 4200 Card |
| Application | Table PC Lift control POS terminal Access control Attendance application Recreational Machine Barrier gate or rapid-open gate Advertising tablet PC Medical Electronic Equipment Identification card scanner Smart game equipment Hand-held intelligent terminal POS consumption endpoint |
| Operating Temperature | 14 °F to 158 °F (-10 °C to 70 °C) |
| Dimension | 1.54 in X 0.75 in X 0.35 in (39 mm X 19 mm X 9 mm) |
