Description
Overview

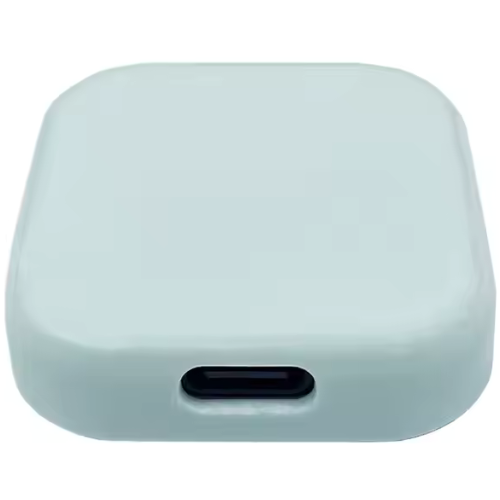

The Smart IoT BLE Bluetooth 5.0 Module with a 9-axis motion sensor is ideal for wearable IoT devices. It features a Nordic nRF52832 chipset, BMI055 accelerometer and gyroscope, and QMC6310 magnetometer. With a 250mAh LiPo battery and IP66 waterproof rating, it ensures 25 hours of operation per charge. Lightweight (14g) with ABS construction, it supports Type-C charging and offers a 50m transmission range for IoT and smart home applications.
Features
- Bluetooth 5.0 connectivity
- 9-axis motion sensor
- IP 66 waterproof design
- Lightweight ABS plastic case
- Rechargeable 250 mAh LiPo battery
- Type-C charging port
- Compatible with Holyiot-sensor app
Applications
- IoT Device Management
- Smart Home Automation
- Industrial Monitoring Systems
- Asset and Environment Tracking
Technical Specifications
| Sensors | Accelerometer (BMI 055), Gyroscope (BMI 055), Magnetometer (QMC 6310) |
| Waterproof Level | IP 66 |
| Battery Type | Rechargeable LiPo battery |
| Battery Capacity | 250 mAh |
| Battery Life | 25 hrs with full charge |
| Operating Voltage | 3.7 V |
| Charging Port | Type-C |
| Antenna Type | PCB antenna |
| APP Compatibility | Holyiot-sensor |
| Transmission Distance | 164 ft (50 m) in open areas |
| Dimensions | 1.53 in x 1.53 in x 0.45 in (38.95 mm x 38.95 mm x 11.5 mm) |
| Weight | 0.49 oz (14 g) |
