Description
Overview

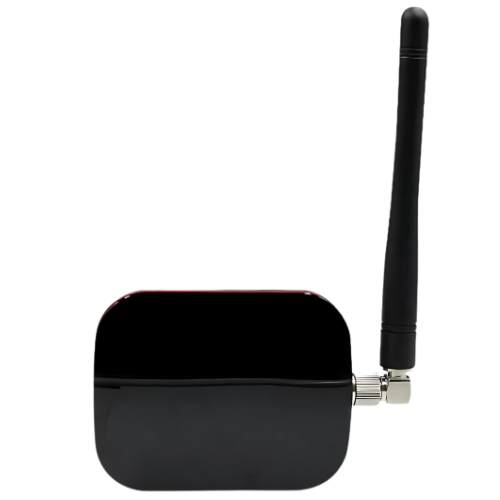

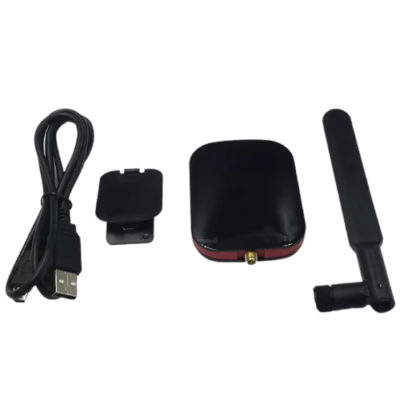

Asset Track Pro BLE beacon and gateway for indoor positioning is a product that integrates Bluetooth 5.0, WIFI functions. Through BLE 5.0, we can set and modify some basic parameters of the product, and at the same time, we can upgrade the firmware of the product through BLE 5.0. Through the integrated WIFI function, the data collected can be transmitted locally or remotely. It is easy to use. Simply configure the network of the product and and it can start to work. Gateway is Powerful indoor positioning device. Its functions include BLE Beacon & Tag & WIFI gateway. The Gateway works together with tags (company card shaped tags), to achieve precise indoor positioning with 1m accuracy.
Technical Specifications
| BLE Chip | Nordic 52 series |
| UWB Chip | DW 1000 |
| Wi-Fi Chip | ESP 8266 |
| BLE Version | BLE 5.0 |
| BLE Range | 328 ft (100 m) |
| Features | RGB LED and Sound buzzer |
| Battery | Powered by USB |
| Material | ABS |
| Color | Black |
| Frequency | 2.402 GHz to 2480 GHz |
| Temperature | -40 °F to 185 °F (-40 °C to 85 ℃) |
| Dimension | 3.1 in x 2.3 in x 0.4 in (8 cm x 6 cm x 1.1 cm) |
| Weight | 5 oz (143 g) |
