Description
Overview

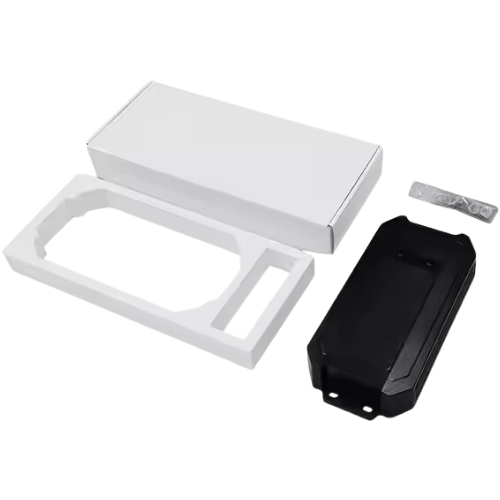

The BLE Beacon and Gateway Asset Tracking Device features GSM, GPS, and Beidou positioning with a strong magnetic mount. It offers a 20000mAh battery for 96+ hours of operation, IP67 waterproofing, and a compact design (154x82x30mm, 350g). Equipped with Quectel BG95 and Bluetooth 5.0, it provides real-time tracking via cloud, apps, or SMS. Ideal for asset and vehicle tracking, it ensures reliability in diverse environments.
Features
- GPS tracking with 16.4 ft to 32.8 ft (5 m to 10 m) accuracy
- Bluetooth 5.0 and Wi-Fi 4.0 connectivity
- 20000 mAh lithium-ion battery with ultra-low discharge
- Durable IP 67 waterproof design
- CAT M1 or NB-IoT cellular network support
- Internal high-gain GSM and GPS antennas
- Motion sensor for enhanced tracking
- Embedded TCP or IP stack for communication protocols
- 2 status LEDs for GPS and cellular indicators
Applications
- IoT Device Management
- Indoor Navigation Systems
- Asset and Personnel Tracking
- Smart Home and Office Automation
Technical Specifications
| Connectivity | Bluetooth 5.0, Wi-Fi 4.0, CAT M1orNB-IoT, GSM |
| Position Accuracy | 16.4 ft to 32.8 ft (5 m to 10 m) |
| Sensitivity | GPS: -147 dBm, GSM: -107 dBm (850 MHz or 900 MHz), -106 dBm (1800 MHz or 1900 MHz) |
| Processor | STM32G070CB |
| Battery Capacity | 20000 mAh (Disposable lithium-ion, ultra-low discharge) |
| Power Consumption | < 100 mA (average), < 15 µA (power save mode) |
| Antennas | Internal high-gain GSM and GPS antennas |
| Indicators | 2 LEDs: Green (GPS), Red (Cellular) |
| Ingress Protection | IP67 |
| Operating Temperature | -4 °F to 158 °F (-20 °C to 70 °C) |
| Humidity | 5% to 95% (non-condensing) |
| Dimensions | 6.06 in x 3.23 in x 1.18 in (154 mm x 82 mm x 30 mm) |
| Weight | 12.35 oz (350 ± 5 g) |
