Description
Overview

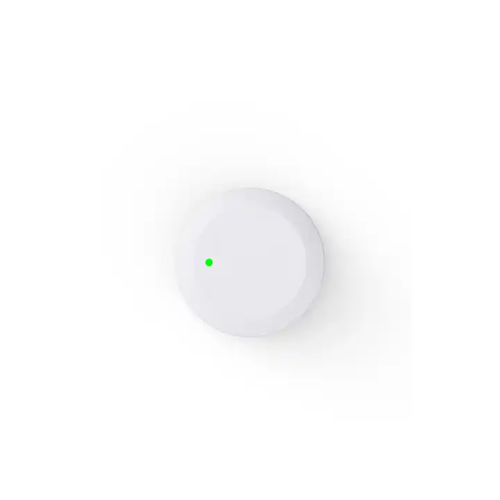

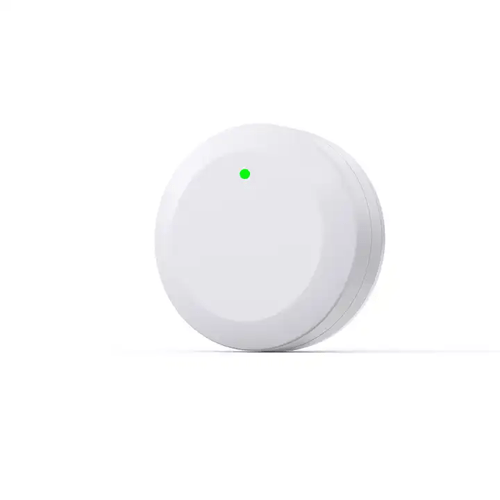

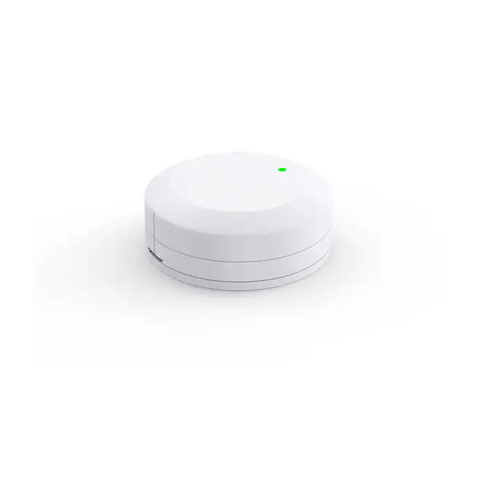

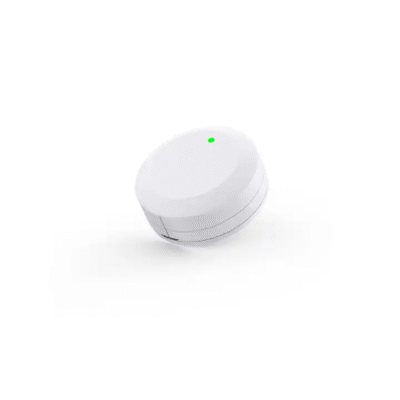

Asset Track Pro tracker locator bluetooth beacon is a portable beacon with ultra-low power chipset NRF 52 series and BLE 5.0 technology. P2 Beacon has a battery life of over 10 years. It is waterproof IP 67 and has a Bluetooth broadcast range of 900 m, designed for asset tracking and indoor & outdoor location services. P2 is easy to install with a 3M sticker mount.
Features
- Chip: Nordic NRF 52 series
- Bluetooth range 2952.8 ft (900 m)
- IP 67 waterproof
- Large capacity battery (5200 mAH)
- Easy to replace the battery
- Support bracket installation and 3 M stickers
- SDK or Library Provided
- 8 dBm tx power
Technical Specifications
| Material | ABS |
| Battery | Default: 2 x ER 14505 battery 5200 mAh (replaceable)Optional: 2 x AA battery 2200 mAh (replaceable) |
| Battery Life | 10 years (Base on Broadcast Interval 0.2 s and TX power 0 dBm) |
| Waterproof | IP 67 |
| Chipset | NRF 52 series |
| BLE Version | BLE 5.0 (Compatible with BLE 4.x) |
| Protocol | IBeacon, Eddystone, Ksensor |
| OTA | YES |
| Button | 1 Button (internal) |
| Sensor | Accelerometer |
| Working Temperature | -40 °F to 158 °F (-40 °C to 70 °C) |
| Storage Temperature | 50 °F to 77 °F (10 °C to 25 °C) ≤65% RH |
| Size | Dia 2.9 in x 0.9 in (74 mm x 24 mm) Dia 2.9 in x 1.1 in (74 mm x 28 mm) (with bracket) |
| Weight | 0.22 lb (98 g) (with battery) |
Click Here to Download Technical
Documentation (User Manual or Instruction Manual)
