Description
Features
- Chipset nRF 52
- Battery CR 2032 Panasonic battery
- Battery life 18 months based on broadcasting rate 1 second
- Sensor acceleration sensor
- Buzzer
- All the parameters can be configured
Technical Specifications
| Chip | NRF 52 |
| Battery model | CR 2032 |
| Operation Voltage | 2.0 V to 3.6 V |
| Operation Frequency | 2400 MHz to 2483.5 MHz |
| Frequency Error | +/- 20 KHz |
| Modulation | Q QPSK |
| Standby current | 12 uA |
| Output Power | 4 dBm to -40dBm |
| Receiving Sensitivity | -93 dBm |
| Transmission distance | 229.7 ft (70 m) |
| Antenna | 50 ohms |
| State | Operation Current (uA) |
| Sleeping Mode | 3.6 |
| Connectable Mode | 142 |
| Non-Connectable Mode | 22.5 |

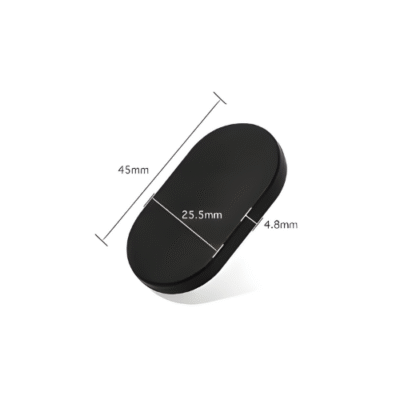

| Dimensions | 1.8 in x 1 in x 0.2 in (45.2 mm x 25.7 mm x 5 mm) |
