Description
Overview

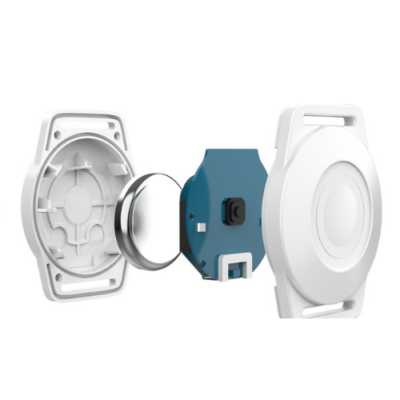

Asset Track Pro’s Bluetooth Wristband Beacon with NFC & Accelerometer W3 Pro IoT Beacon is a disposable wristband tag equipped with a 3-axis accelerometer sensor, designed for advertising iBeacon, Eddystone, and sensor data. The beacon features precise hardware and robust firmware, housed in an anti-dismantling shell, with a PVC disposable wristband. It is ideal for personnel tracking, positioning, and activity monitoring in environments such as hospitals, nursing homes, and playgrounds. The beacon comes in two series: W3P-P5201D3 (with buttons) and W3P-P5201DN (without buttons). The W3 Pro IoT beacon works seamlessly with an MKGW1 Bluetooth gateway, enabling real-time monitoring and data upload to the cloud for efficient management and staff coordination.
Features
- Advertising Beacon Device
- Supporting BLE5.0
- Ultra-low power consumption chipset NRF52 Serise
- 6 Slots can be configured
- Support button trigger and motion trigger
- Firmware updated via DFU
- G-value, sampling rate and sensitivity of 3-axis accelerometer sensor can be configured
- Logo customizable (MOQ 100units)
- Wristband color and Wristband with NFC customizable(MOQ:500pcs)
- Provided with your own configuration (MOQ 100 units)
- 100% Configurable Parameters via MokobeaconX Pro app (Android & iOS)
Technical Specifications
| Battery Model | CR2032 |
| Battery Capacity (Mah) | 225mAh |
| Default Battery Life | Up to 1 year |
| Battery Replaceable | No |
| Max Range | 295.33 ft (90m) (+4dBm) |
| Waterproof | Yes IP67 |
| Protocols | iBeacon& Eddystone: UID, URL, TLM Eddystone Configuration GATT Service |
| Firmware Updating | OTA |
| Attachment Method | Disposable detachable Wristband |
| Built-In Sensor | Accelerometer sensor |
| Addition Tech | Customizable built-in 13.56MHz NFC wristband |

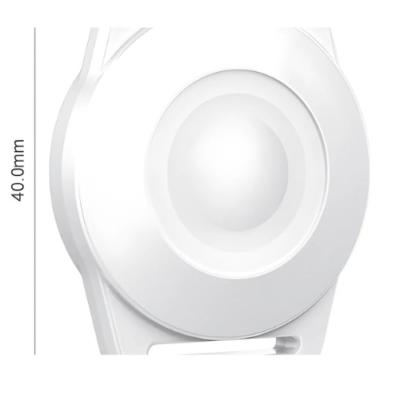

| Size | 1.57 x 1.26 x 0.40 in (40.0 mm x 32.0 mm x 10.3 mm) |
