Description
Overview

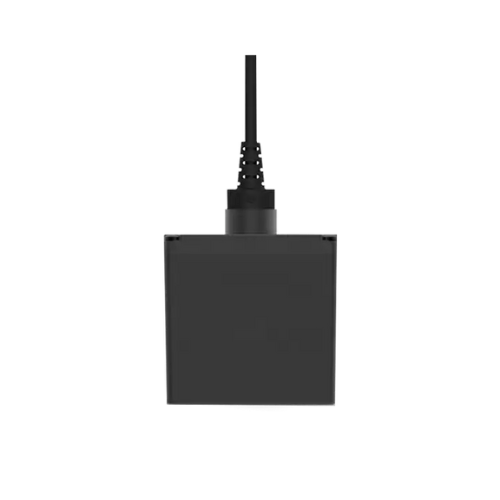

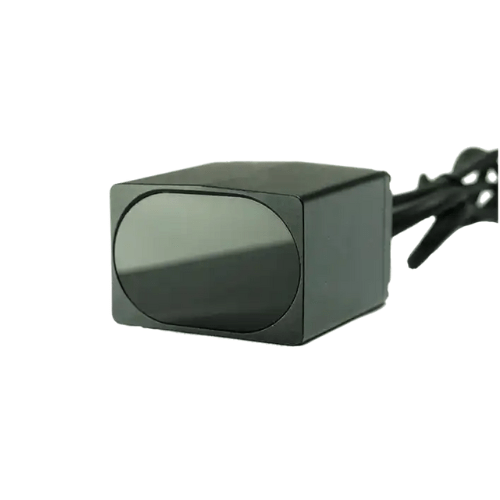

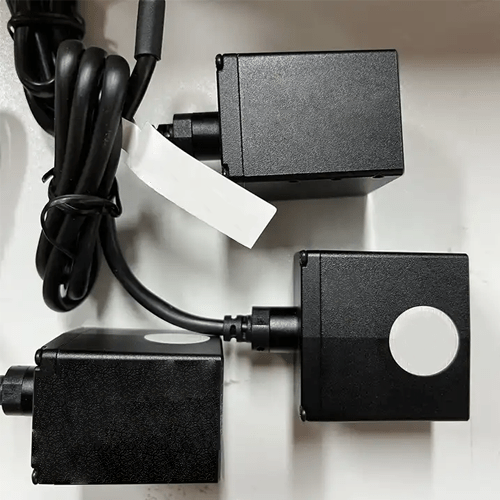

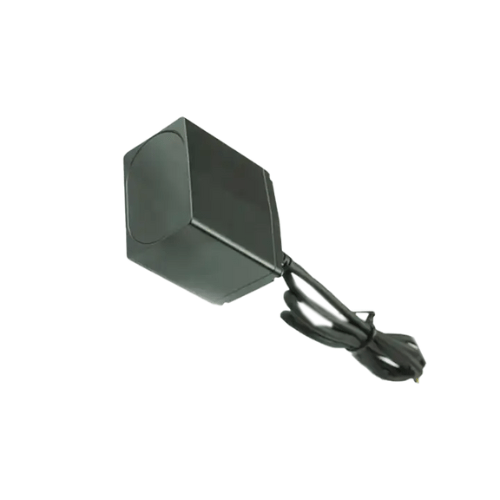

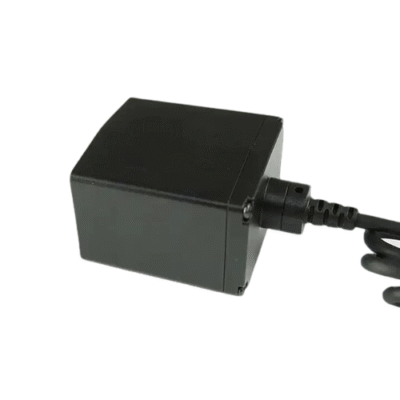

Asset Track Pro lidar sensor is an industrial grade high-speed measurement lidar with a range of up to 180 m. It internally integrates compensation algorithms for outdoor strong light and rain, snow, and fog environments, ensuring that it can operate normally in strong light and rain environments. It has multiple measurement modes and parameters for customers to choose and configure independently to meet the ranging needs of different customers. The analog version supports 4 m to 20 m current output, which is suitable for industrial scenarios.
Features
- High frame rate, low power consumption, and easy integration
- High frequency, multiple interfaces, long-ranging
- IP 67 protection, available in harsh environments
- High performance, small volume
- Support customer custom parameters
Technical Specifications
| Accuracy | ±10 cm (<10 m), 1 % (>10 m) |
| Output accuracy | 0.1 mA |
| Distance resolution | 1 cm |
| Frame rate | 1 Hz to 1000 Hz adjustable (default 100 Hz) |
| Resistance to ambient light | 100 Klux |
| Working temperature | -13 °F to 140 °F (-25 °C to 60 °C) |
| Protection level | IP 67 |
| Light source | LD |
| Center wavelength | 905 nm |
| Eye safety | Class1 (EN 60825) |
| Field of view angle | 0.5° |
| Supply voltage | 5 V to 24 V |
| Average current | ≤150 mA 5 V, 80 mA 12 V, ≤50 mA 24 V |
| Power waste | ≤1 W |
| Peak current | 150 mA |
| Communication interface | Analog quantity (4 mA to 20 mA), CAN UART |
| Shell material | Aluminum |
| Line length | 27.56 in (70 cm) |
| Storage temperature | -40 °F to 185 °F (-40 °C to 85 °C) |
| Size | 1.73 in × 1.69 in × 1.25 in (44 mm x 43 mm x 32 mm) |
| Weight | 0.20 lb (92 g) |
