Description
Overview

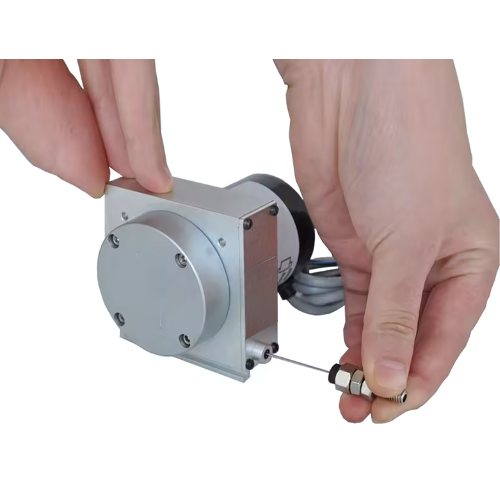

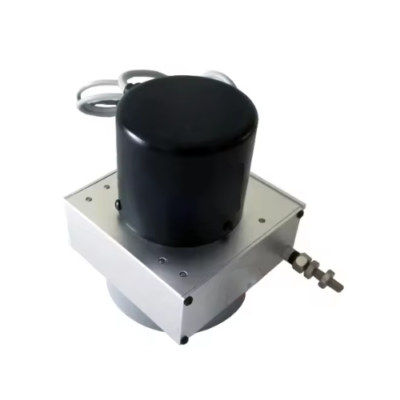

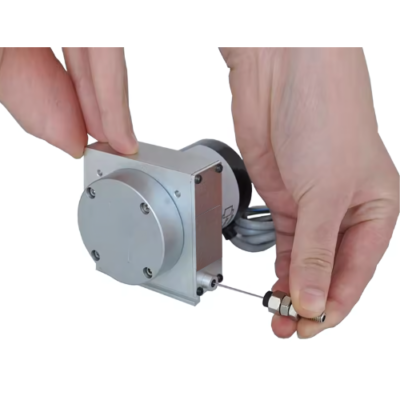

Asset Track Pro compact high precision linear encoder rope displacement sensor, IP67 also known as rope sensor, rope encoder. It is fully compacted by a linear displacement sensor in structure which combined the advantages of an angle sensor and linear displacement sensor, ranging from a few hundred millimeters to 10 meters, with 4 mA to 20 mA analog current, analog voltage 0 to 5 V or 0 V to 10 V and pulse A, B, Z-phase digital output to meet various signals demand of the large stroke, high precision for the majority of customers use.
Technical Specifications
| S Frame size | The maximum effective stroke 88.6 in (225 cm,) |
| Linearity | (Universal) 0.25 % FS (Precision) 0.05 % FS |
| Repeatability | 0.01 % FS to 0.005 % FS |
| Product Type | Current Mode (4 to 20 mA or 20 to 4 mA) voltage type (0 to 10 Vdc or 10 to 0 Vdc) |
| Resistive | (0 to 5 kΩ or 0 to 10 kΩ) pulse type (typically 3600 ppr to 5000 ppr, incremental) |
| Fixing screws | M 0.16 in (0.4 cm); Installation: bracket (two) |
| Effective life | 500 million times reciprocating stroke; protection class: IP67 |
| Mounting screw | M4 |
| Traction screws | M6 |
| Mounting bracket hole distance | 1.1024 ± 0.0197 in (2.8 ± 0.05 cm) |
| The distance between the two brackets | recommended between 1.5748 to 2.1654 in (4 cm to 5.5 cm) |
