Description
Overview

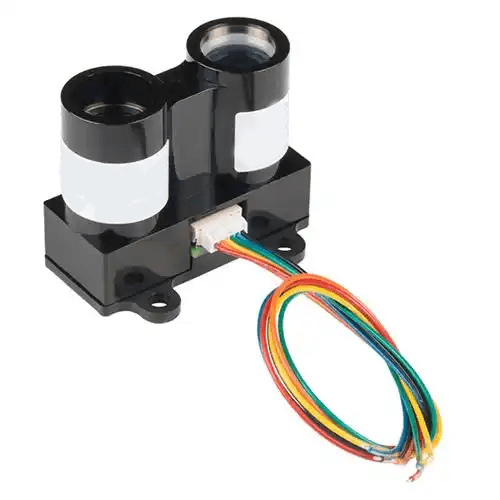

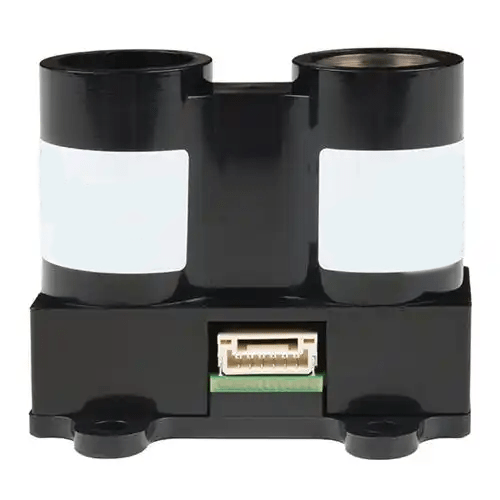

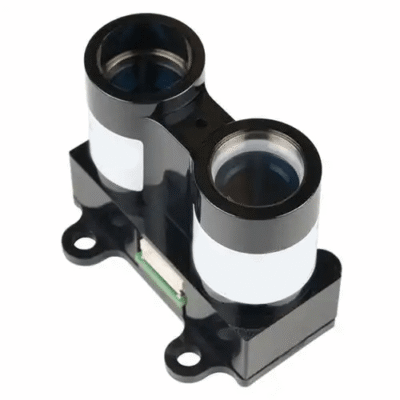

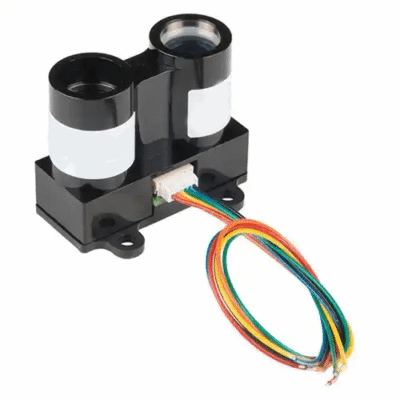

Asset Track Pro LiDAR optical distance measuring sensor is a highly integrated, high-performance optical ranging module that can be used in applications such as drones, robots or unmanned vehicles that require high reliability and robustness, and are ultra-small, standard I2C and The PWM interface can detect distances up to 40 meters. Revised signal processing solution increases measurement speed by 5 times. With the implementation of a new signal processing architecture, LIDAR-Lite 3 will now operate at speeds up to 500 readings per second for scanning applications for higher resolution measurements.
Features
- This rangefinder module is the latest version of V 3
- Faster and more accurate than LIDAR-Lite V2
- Reduced price signal processing measurement speed increased by x 5
- Improved I2C communication and allocation of I2C addresses
- Meet drones, robots and other demanding applications
Technical Specifications
| Range | 0 ft to 131 ft (0 m to 40 m) laser transmitter |
| Power | 4.7 V to 5.5 V |
| Current consumption | <100 mAh |
| Acquisition time | Less than 0.02 sec |
| Repeat rate | 1 Hz to 500 Hz |
| Interface | I2C or PWM |
| Module size | 0.79 in x 1.9 in x 1.6 in (20 mm x 48 mm x 40 mm) |
| PCB size | 1.8 in x 0.6 in (44.5 mm x 16.5 mm) |
| Module weight | 0.04 lb (16 g) |
| PCB weight | 0.01 lb (4.5 g) |
