Description
Overview

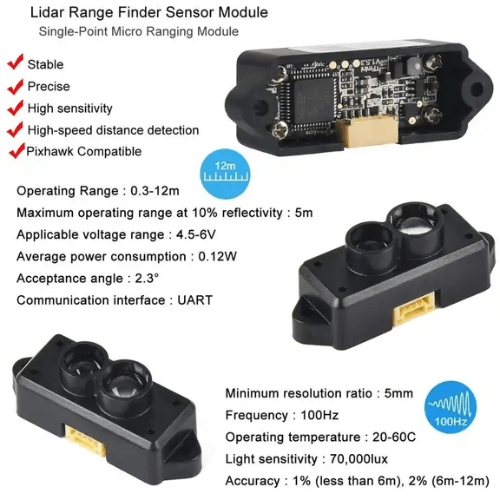

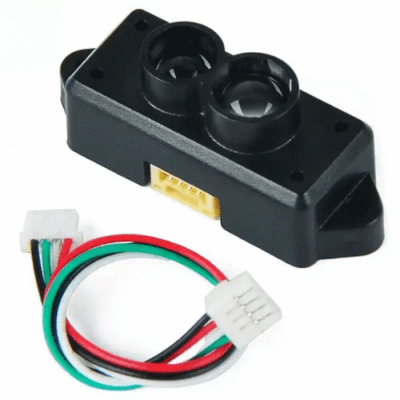

The Asset Track Pro Lidar Range Finder Sensor is a single-point micro ranging module and could be widely used in the integrated application of various drones, UAVs, Robots, and industrial equipment. It is based on ToF principle and integrated with unique optical and electrical designs, so as to achieve stable, precise, high sensitivity and high-speed distance detection.
Features
- Operating Range 11.8 in (0.3 m) – 472.2 in (12m)
- Maximum operating range at 10% reflectivity 196.8 (5 m)
- Applicable voltage range 4.5V – 6V
- Average power consumption 0.12 W
- Acceptance angle 2.3°
- Communication interface UART
- Minimum resolution ratio 0.19 in (5 mm)
- Frequency 100 Hz
- Operating temperature 68 ºF to 140 ºF (20 ºC to 60 ºC)
- Light sensitivity 70,000 lux
- Accuracy 1% (less than 6m), 2% (6m – 12m)

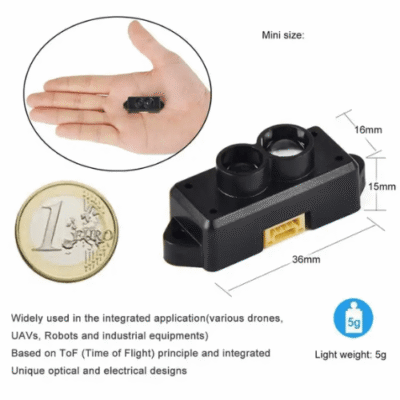

- Size 1.4 in x 0.5 in x 0.6 in (36mm x 15mm x 16mm)
- Weight 0.01 lb (5g)
Technical Specifications
| Operating Range | 0.3 m to 12 m |
| Voltage | 4.5 V to 6 V |
| Average Power Consumption | 0.12 W |
| Acceptance Angle | 2.3° |
| Minimum Resolution Ratio | 0.19 in (5 mm) |
| Frequency | 100 Hz |
| Light Sensitivity | 70,000 lux |
| Temperature | 68 ºF to 140 ºF (20 ºC to 60 ºC) |
| Size | 1.4 in x 0.5 in x 0.6 in (36mm x 15mm x 16mm) |
| Weight | 0.01 lb (5g) |
