Description
Overview

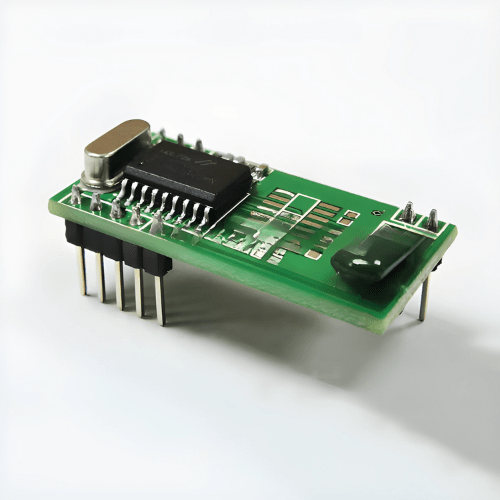

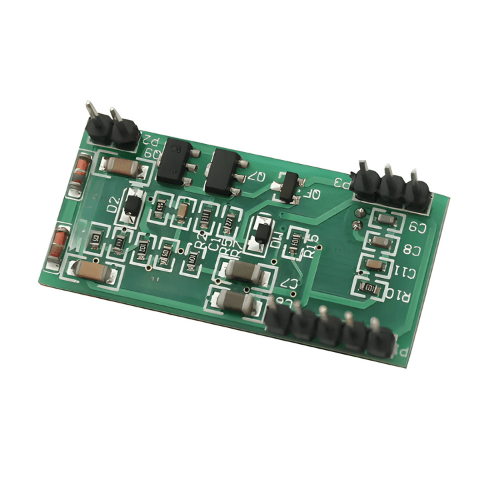

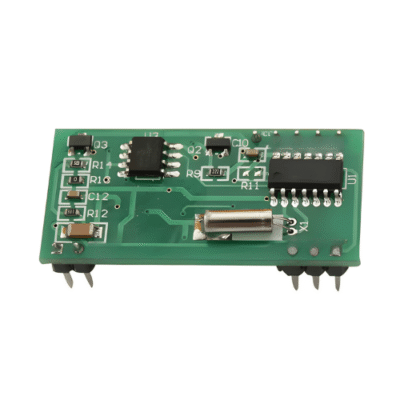

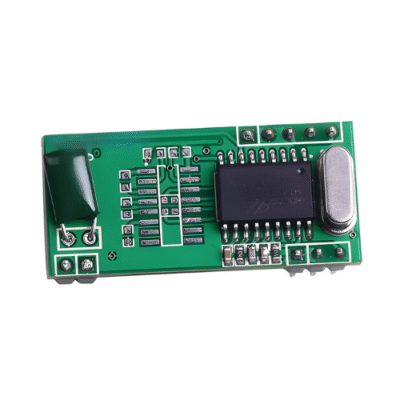

Asset Track Pro 125 Khz Chip Contactless RFID Reader Module is a 125 KHz read-only module for EM 4100 or TK b4100 125 KHz cards, which can read and output CSN card number. It has option of Wiegand 26, RS 232 and TTL output format.
Features
- 125 KHz Operating Frequency
- Available to be embedded into individual items
- Read CSN card number only
- Different output formats
Technical Specifications
| Frequency | 125 KHz |
| Protocol | ISO 14443A or B, ISO 15693 and ISO 18092 |
| Support Chips | Em 4200 Tk 4100 T 5577 Em 4305 NFC UL |
| Protection Level | IP 65 |
| Connection | metal PIN connection |
| Interface Option | Wg 26 or 34 TLL |
| Power Supply | 3.3 V or 5 V |
| Reading Distance | > 0.03 ft (8 cm) |
| Antenna | external, different size for option |
| Reading Range | 0 ft to 0.03 ft (0 cm to 8 cm) |
| Read Or Write | read UID only |
| Supporting Card | EM 4200 or TK 4100 |
| Application | Table PC Lift control POS terminal Access control Attendance application Recreational Machine Barrier gate/rapid-open gate Advertising tablet PC Medical Electronic Equipment Identification card scanner Smart game equipment Hand-held intelligent terminal POS consumption endpoint |
| Operating Temperature | -14 °F to 158 °F (-10 °C to 70 °C) |
| Dimension | 1.54 in X 0.75 in X 0.35 in (39 mm X 19 mm X 9 mm |
