Description
Overview

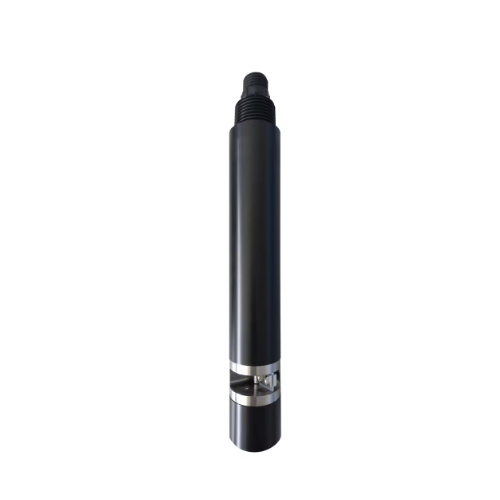

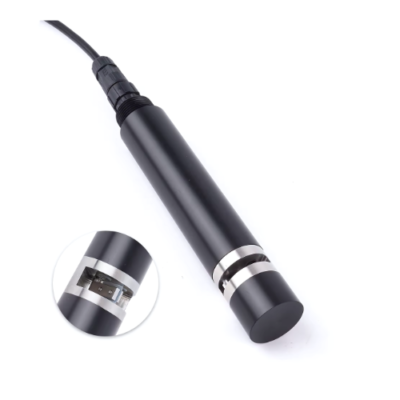

Asset Track Pro dual light source sensor for COD and turbidity with RS485 and MODBUS output is the COD sensor is a new generation of environmentally friendly COD sensor launched by our company. It requires no reagents, no pollution, and is more economical and environmentally friendly.
Features
- No reagents, no pollution, more economical and environmental protection
- Small size, easy installation, and continuous water quality monitoring
- Measure COD, turbidity and temperature parameters
- Automatic compensation for turbidity interference
- With a cleaning brush to prevent bio-adhesion
- Small drift, fast response, more accurate measurement
- Excellent stability even for long-term monitoring
- Maintenance-free, long service life and low cost of use
- Digital sensor, RS-485 interface, Modbus/RTU protocol
- Low power design, anti-interference design
Technical Specifications
| COD Precision | ± 5 % F.S. |
| COD Resolution | 0.1 mg or L |
| Turbidity range | 0NTU to 100 NTU |
| Turbidity accuracy | ± 5 % F.S. |
| Turbidity resolution | 0.1 NTU |
| Calibration method | Two-point calibration |
| Output method | RS-485 bus, Modbus or RTU protocol |
| Power supply | 12 VDC to 24 VDC |
| Power consumption | <0.2W at 12 VDC |
| Protection level | IP68 |
| Installation method | Immersion installation |
| Working conditions | 32 to 113°F (0 ℃ to 45 ℃) < 0.2 MPa |
| Storage temperature | 23°F to 149°F (-5 ℃ to 65 ℃) |
