Description
Technical Specifications

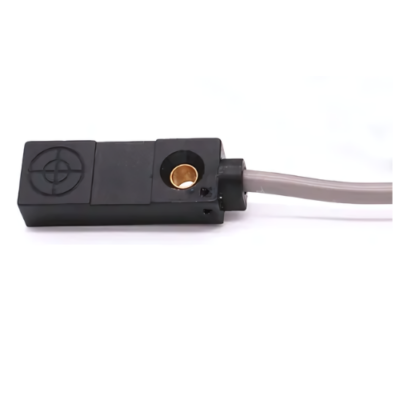

| Mounting type | Flush |
| Output | NO or NC (depends on part number) |
| Supply voltage | 10 V DC to 30 V DC |
| Switch point drifts | ≤ ±10 % |
| Hysteresis range | 1 to 5 % |
| Repeat accuracy (R) | ≤ 1 % |
| Load current | ≤ 200 mA |
| Residual voltage | ≤ 1.5 V (DC 3 wires) ≤ 3 V (DC 2 wires) |
| Leakage current | ≤ 10 mA (DC 2 wires) |
| Consumption current | ≤ 10 mA (DC 3 wires) |
| Protection circuit | Short-circuit, overload, reverse polarity |
| Indicator | Red LED |
| Ambient humidity | 35 RH to 95 % RH |
| Switching frequency (F) | 1200 Hz |
| Insulation resistance | ≥ 500 MΩ (500 VDC) |
| Vibration resistance | 10 Hz to 50 Hz 0.59 in (0.15 cm) |
| Protection degree | IP67 |
| Ambient temperature | -4 °F to 158 °F (-20 °C to 70 °C) |

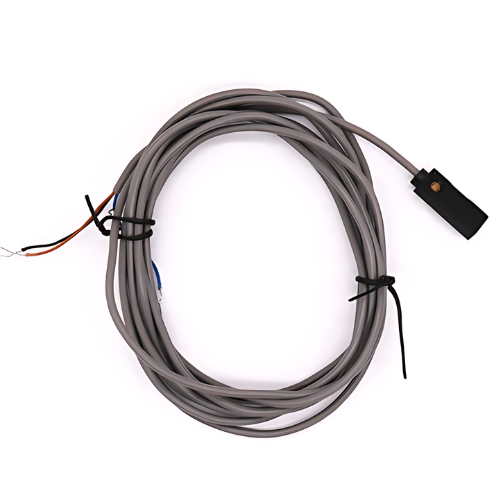

| Connection type | 78.74 in (200 cm) PVC cable |
| Rated distance (Sn) | 0.08 in (2 mm) |
| Rated distance (Sn) | 0.08 in (2 mm) |
| Standard target | Fe 0.59 in x 0.59 in x 0.04 in (1.5 cm x 1.5 cm x 0.1 cm) |
