Description
Overview

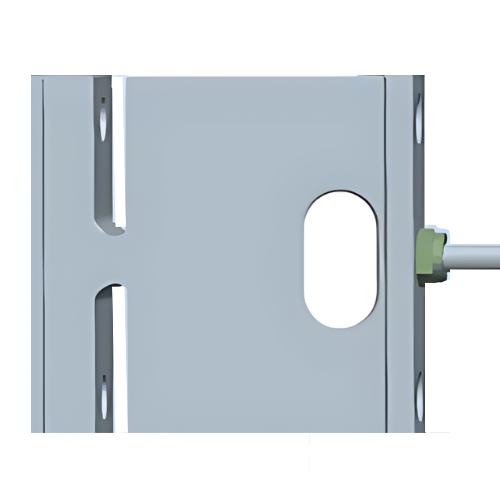

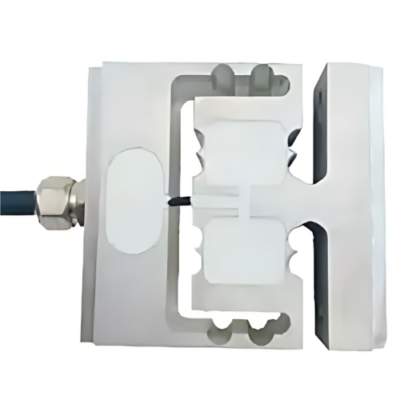

Asset Track Pro high-accuracy 2-axis force sensor for robotics, CNC, medical equipment is used to measure forces and moments changing on three axes (x, y). This product is ideal for robotics arms, CNC centers, complex surface machining and high-precision medical equipment. This sensor has high accuracy and strong resistance of deflecting load.
Features
- High accuracy and strong ability of anti-side force.
- Easy to install, IP65 design.
- Ideal for robotics arms, CNC centers, complex surface machining as well as high precision medical equipment.
- Customization available
Technical Specifications
| Capacity | X: 20 / 50 / 100 / 150 / 200 Y: 20 / 50 / 100 / 150 / 200 |
| Rated output | 1.1 ± 0.1 % mV/V（X） 2.2 ± 0.2 % mV/V（Y） |
| Zero balance | ± 0.1 F.S. |
| Non-linearity | 0.03 % F.S. |
| Hysteresis | 0.03 % F.S. |
| Repeatability | 0.03 % F.S. |
| Creep(30min) | 0.03 % F.S. |
| Input impedance | 300 to 500 Ω |
| Output impedance | 300 to 500 Ω |
| Insulation | ≥ 5000 M Ω / 100 VDC |
| Recommended excitation | 5 V to 12 V |
| Maximum excitation | 15 V |
| Safe overload | 150 % F.S. |
| Ultimate overload | 300 % F.S. |
| Material | aluminum alloy |
| Temperature effect on output | 0.05 % F.S./ 50 °F (10 ℃) |
| Temperature effect on zero | 0.05 % F.S./ 50 °F (10 ℃) |
| Compensated temp range | 14 °F to 104 °F (-10 ºC to 40 ℃) |
| Operation temp range | -13 °F to 158 °F (-25 ℃ to 70 ℃) |
| Cable size | 315 ± 3.9 in (800 ± 10 cm) |
| Weight approx. | 7.05 oz (200 g) |
