Description
Overview

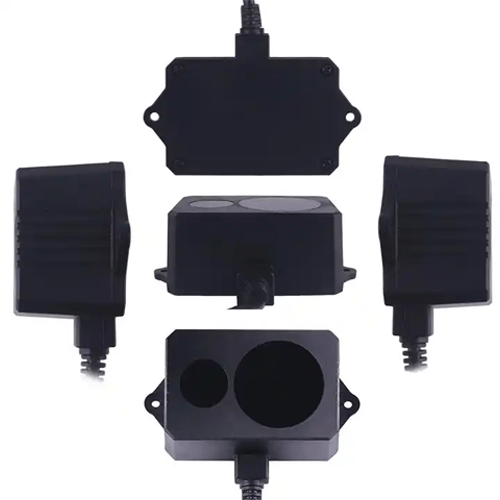

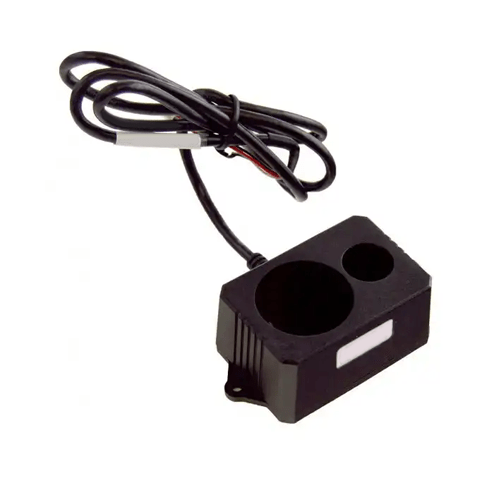

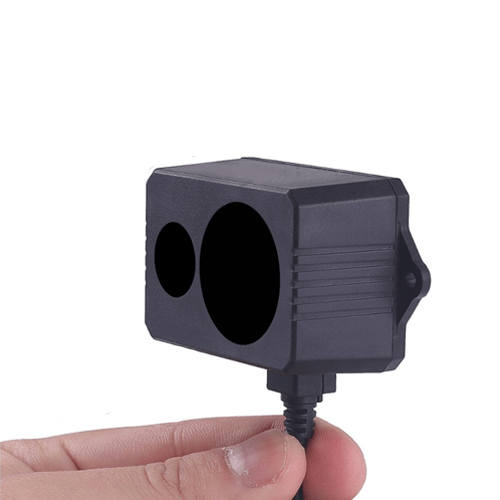

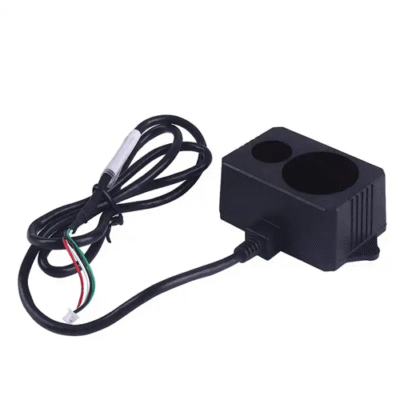

Asset Track Pro LiDAR laser sensor is a newly developed product. It possesses a higher performance and is applicable to more fields. On the basis of preserving multiple advantages from the last generation, it highly optimizes the energy system, product structure, fusion algorithm, and shell material so as to achieve a 72.18 ft-long range and a more stable ranging performance. Combining an innovative production process and multiple software and hardware optimizations to a consumer level makes it applicable in numerous fields.

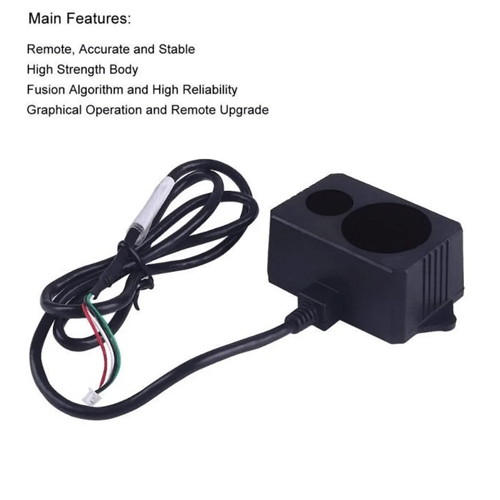

Features
- High sensitivity, and able to measure as far as 72.18 ft
- High speed measurement with a maximum sampling frequency of 100 Hz
- Excellent anti-ambient light usability
- Operable under 100 kLux ambient light
- Protection grade reaches IP 65
- Anti-corrosive against pesticide
- Small in size and light
Technical Specifications
| Measurement accuracy | (±1.97 in (0.33 ft to 19.69 ft), ±1% (19.69 ft to 39.37 ft)) (±5 cm (0.1 m to 6 m), ±1% (6 m to 12 m)) |
| Frame rate | 1 Hz to 100 Hz (adjustable) |
| Ambient light resistance | 100 klux |
| Protection level | IP 65 |
| Light source | LED |
| Center wavelength | 850 nm |
| Signal receiving angle | 1.5° |
| Input voltage | 5 V ± 0.5 V |
| Average current | 1 A |
| Shell material | ABS and PC |
| SKU | Standard |
| Working temperature | 14 ℉ to 140 ℉ (-10 ℃ to 60 ℃) |
| Size | 2.72 in x 1.81 in x 1.02 in (69 mm x 46 mm x 26 mm) |
