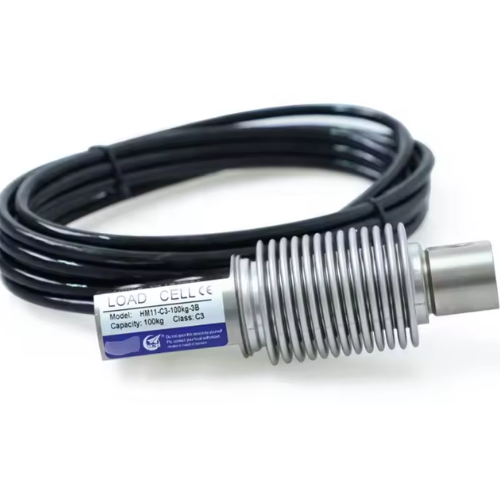

High Precision 1102.31 lb Force Sensor Analog Output Resistance Sensor - Asset Track Pro

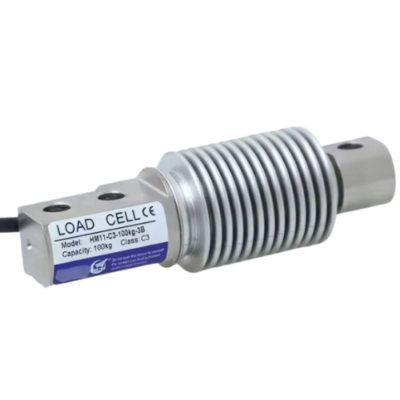

High Precision 1102.31 lb Force Sensor Analog Output Resistance Sensor - Asset Track Pro - Image 2

High Precision 1102.31 lb Force Sensor Analog Output Resistance Sensor – Asset Track Pro

Reliable force measurement for weighing scale load cells in various industrial and commercial settings.

SKU: ATPMFS-204 Category:

Description

Features

  • Alloy steel, nickel-plated, single point bending beam, hermetically welded, tension or compression
  • Ingress protection (according to EN 60529): IP68
  • Suitable for belt scales, hopper



Technical Specifications

Output resistance 350 ± 3 Ω
Input resistance 404 ±15 Ω
Extreme Load Limit 300 % FS
Safe Load Limit 150 % FS
Max Excitation Voltage 18 V (DC)
Recommended Excitation Voltage 5 V to 12 V (DC)
Zero Output (%FS) ± 1.0
Insulation Resistance ≥ 5000 (50 V DC)
Output Sensitivity 2.0 ± 0.02 mV/V
Sensitivity Drift (% FS / 30 min)
Max Verification Divisions 2000
Comprehensive Error ± 0.030
Min Verification Interval Emax / 5000
Temperature Influence on Zero Output (% FS / 50 °F (10 °C))
Temperature Influence on Output Sensitivity (% FS / 50 °F (10 °C))
Operating Temperature Range 14 °F to 104 °F (-10 °C to 40 °C)
Permissible Temperature Range -31 °F to 158 °F (-35 °C to 70 °C)
Amount Load



 11.02 lb (5 kg), 22.05 lb (10 kg), 44.09 lb (20 kg), 66.14 lb (30 kg), 110.23 lb (50 kg), 220.46 lb (100 kg), 440.92 lb (200 kg), 551.16 lb (250 kg), 661.39 lb (300 kg), 771.62 lb (350 kg), 1102.31 lb (500 kg)
