Description
Overview

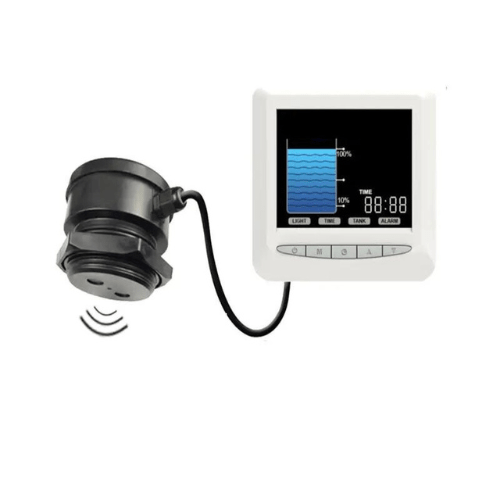

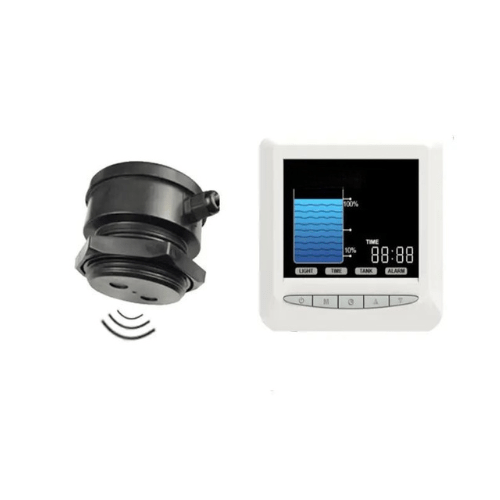

Asset Track Pro ultrasonic sensor is a reliable, cost-effective level measurement tool that operates without direct contact with the material. It’s easy to install and maintain, making it ideal for various industries. The sensor measures the time taken for a transmitted pulse to reflect off the material surface, enabling precise distance calculations.
Features
- Ultrasonic Technology
- IoT compatibility
- High reliability
- Durable design
- Data logging
- Energy efficient
- Low maintenance
Technical Specifications
| Power Supply | 4.5 V DC to 5.5 V DC |
| Frequency | 40 Khz |
| Detection Cycle | 10 ms |
| ESD Test | Satisfy EN 61000-4-2: 2009 ESD test standard: CD ±4 KV, AD ±8 KV, Performance Level B |
| Radiation Test | Satisfy EN 5501: 2016 Radiation Test Standard |
| Detection Angle | Horizontal: 1.7° (Typical value): Vertical direction: 12° to 29° (Typical value) |
| Blind Zone | <1.97 in (50 mm) |
| Communication | RS 485 or UART |
| Current | Normal state |
| Measurement Tolerance | ± (1 % Reading + 0.39 in (10 mm)) |
| Measuring Accuracy | 0.16 in (4 mm) |
| Operating Temperature | 73.4 °F to 316.4 °F (- 5 °C to 70 °C) |
| Measuring Range | 1.97 in to 98.43 in (0.05 m to 2.5 m) |
| Size | 3.94 in × 3.94 in × 5.91 in (10 cm x 10 cm x 15 cm) |
| Weight | 2.2 lb (1 kg) |
