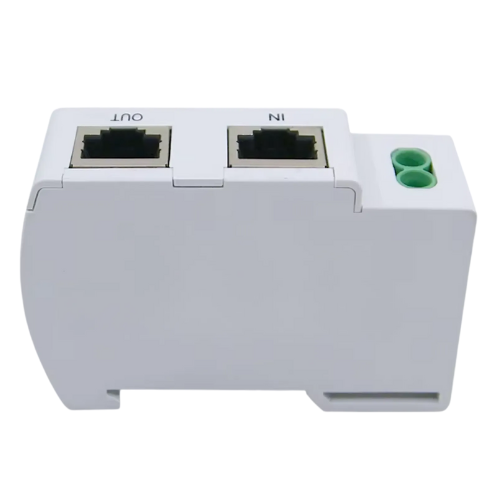

High Pressure Impulse Protection Device with Low Insertion Loss - Asset Track Pro

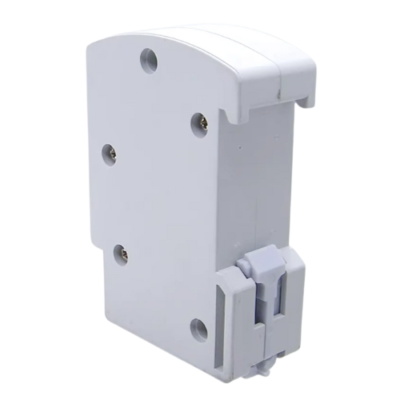

High Pressure Impulse Protection Device with Low Insertion Loss - Asset Track Pro - Image 2

High Pressure Impulse Protection Device with Low Insertion Loss – Asset Track Pro

SKU: ATPPOEA-125 Category:

Features

  • As to the principles of discharge, clamping and voltage stabilization to achieve efficient & reliable high pressure impulse function and accurate clamping voltage
  • Multistage protection, low Residual voltage
  • Convenient installation and simple maintenance.
  • Low-volume, excellent transmission performance,
  • Fast response, low insertion loss.
  • Large intake capacity and long lifetime



Technical Specifications

Working Voltage  5V
Rated Current 850 mA
Nominal Discharge Current (Un) 5 kA
Max. Discharge Current (Imax) 10 kA
Voltage Protection Level (Up) ≤15V
Transmission Rate (Bps) 100M/1000M
Protected Core 1 lines to 8 lines
Port  RJ45
Power 48V
Network Signal  5V
Rated Current  850 mA
Transmission Rate 100M/1000M
Insertion Loss ≤0.2 dB
Response Time ≤1 ns
Temperature -40°F to 176°F (-40°C to +80°C)
Relative Humidity <90 %
Dimensions (L×W×H) 3 in × 2 in × 1 in (7.5 cm × 5.1 cm × 2.5 cm)
Net Weight 3.05 oz (100 g)
