Description
Technical Specifications
| Type | Load Cell |
| Output | MV / V |

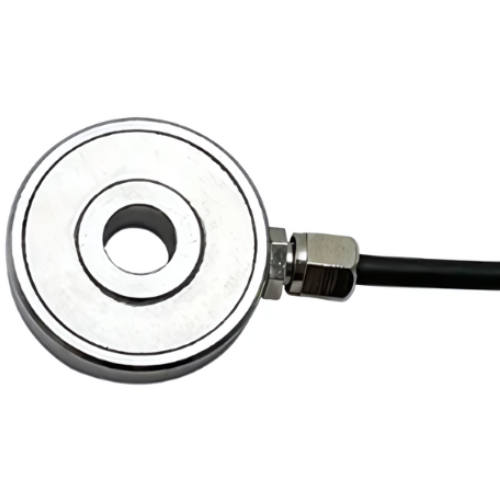

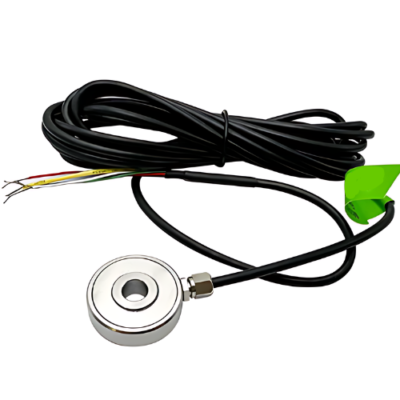

| Description | Annular load cell ring force sensor |
| Capacity | 50 N,100 N,200 N,500 N,1000 N |
| Sensitivity | 1.5 ± 20 % mV / V |
| Non-Linearity | ≤ 0.5 % F.S. |
| Input Impedance | 700 ± 10 Ω |
| Insulation Resistance | ≥ 5000 MΩ / 100 V DC |
| Recommended Excitation | 10 V |
| Safe Overload | 150 % F.S. |
| Material | Stainless Steel |
| Compensated Temp Range | 14°F to 140°F (-10 ℃ to 60 ℃) |
| Cable Size | 1.18 in x 1.18 in (3 cm x 3 cm) |
