Description
Overview

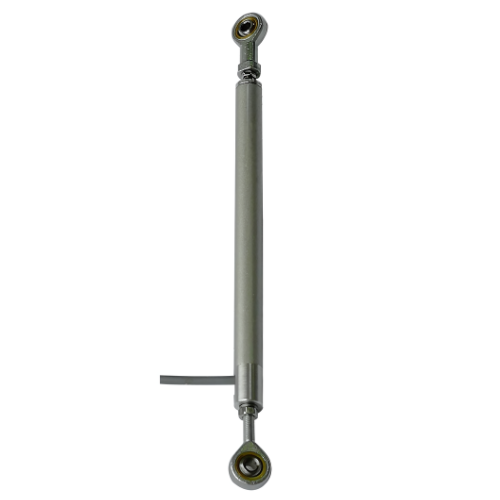

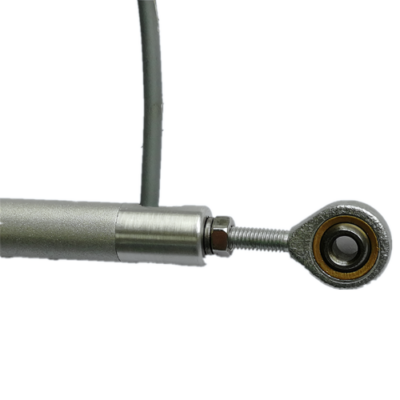

Asset Track Pro Hydra Line High Precision Linear Position Sensor for Hydraulic Machinery brush material is imported from Germany and boasts an exceptional lifespan of over 50 million working cycles. Its compact design makes it ideal for installations with limited space. Versatile output options include resistance, voltage, and current signals. The brush maintains high performance and resolution with an allowed angular deviation and a parallel deviation, Stroke length is customizable.
Features
- The material of brush is imported from Germany, long working cycles, up to over 50,000,000 times
- Compact size, ideal for installation where there is a little space to install
- Multi output signal optional: resistance, voltage and current output
- The allowed angular deviation is +-3 degree, and the allowed parallel deviation is +-0.5 cm
- The stroke length is available from 1 cm to 30 cm
- High performance and resolution
Technical Specifications
| Resolution | Infinite |
| Working Speed | ≤ 5 m/s |
| Vibration | 5 to 2000, A max = 0.75, A max = 20 |
| Working Current | ≤ 1 μ A |
| Max Current | 10 mA |
| Max Voltage | 42 V |
| Input Voltage & Output Voltage Temperature Rate (ppm/K) | 5 (Typical) |
| Insulation Resistance (M Ω) | ≥ 10 at 500 V, 1 bar, 2 s |
| Insulation Intension (μ A) | ≤ 100 at 500 VDC, 50 Hz, 2 s, 1 bar |
| Temperature Range | -40 °F to 248 °F (-40 |
