Description
Overview

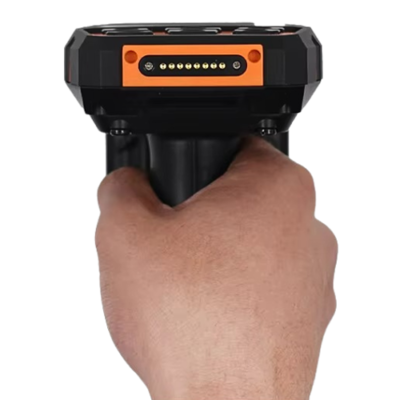

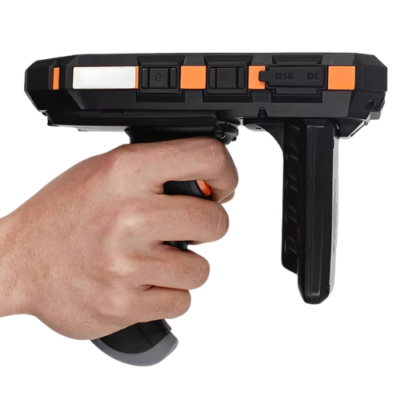

Industrial Mobile PDA Barcode Scanner with RFID Reader products extend Handheld-Wireless product serials into Android OS 7.0 with 4G high-speed network communication with pistol grip. Inside the compact handheld device, a sealing level of IP65 water/dust proof, 1.5m/4.5ft drop survival, ergonomic design, over-molding structure, quick-charging technology, large built-in battery of 8000mAh, and 5.0-inch tough Gorilla Glass 3 9H screen are all equipped to ensure performance. The latest 1.3GHz quad-core processor 2GB RAM/16GB ROM and up to 128GB expansion are all designed to boost experience level.
Features
- Quad A 53 1.3 GHz quad-core CPU
- Waterproof and weatherproof
- Android 7.0 operating system
- 2 GB RAM, 16 GB ROM, (max 128 GB expansion) storage
- IP 65, IEC compliance sealing
- 15 kv air discharge, ±8kv direct discharge (ESD)
- GPS (embedded A-GPS), accuracy of 5 m
- 1 D barcode, 2 D barcode
- 0-megapixel resolution and auto-focus with LED flash (color camera)
- RFID LF, RFID HF, RFID UHF, active 2.45 GHz, 433 MHz
- Fingerprint reader (optional)
- ISO 7816 Protocol
- 9600, 19200, 38400,43000, 56000, 57600, 115200 Baudrate
- Rechargeable li-ion polymer, 3.7 V, 8000 mAh battery
- – 1.5 m drop to concrete across the operating temperature range
Technical Specifications
| Chip | Impinj Indy R2000 |
| Reading Speed | Software programmable |
| Power Supply | DC + 9 V (power adapter) |
| Material | Top class material, nylon (bayer), tempered glass |
| RFID Optional | LF , HF , UHF , Active 2.45 Ghz |
| Humidity | 5 % RH to 95 % RH (non-condensing) |
| Operating Temperature | -4 °F to 122 °F (-20 ℃ to 50 ℃) |
| Dimension | 6.69 in x 3.35 in x 0.91 in (17 cm x 8.5 cm x 2.3 cm ± 2 mm) |
| Weight | 2.204 Ib (1 kg) |
