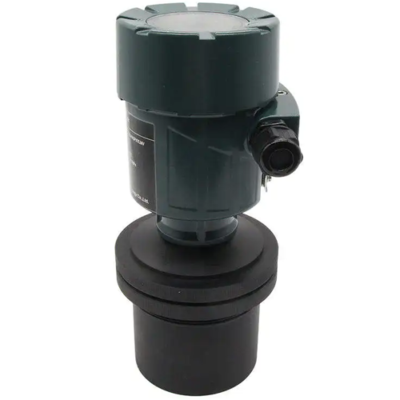

Industrial Ultrasonic Level Measurement Sensor - Asset Track Pro

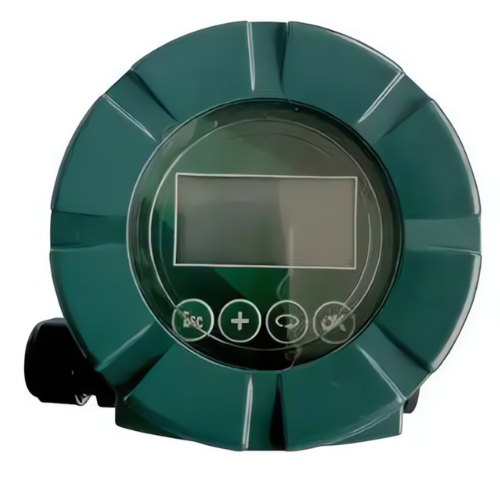

Industrial Ultrasonic Level Measurement Sensor - Asset Track Pro - Image 2

Industrial Ultrasonic Level Measurement Sensor – Asset Track Pro

SKU: ATPNBA-116 Category:

Features

  • Analogue Signals with HART or Digital Signals with RS 485 or MODBUS are Optional
  • Unique Echo Processing Technology with The Functions of an Echo Curve Display and False Echo Storage
  • Built-in Programmer with Buttons for Easy Setting and Calibration
  • Built-in Temperature Compensation; Intrinsically Safe is Optional

Technical Specifications

Grade Industrial
Customized Support OEM
Application Be Suitable for Liquids Level, Solid Particles Level Measurement.
Measuring Range 1.64 ft to 65.62 ft (0.5 m to 20 m)
Process Connection Thread M 95×2,Bracket or Flanges
Process Pressure – 0.02 MPa to 0.1 MPa
Accuracy +/- 0.25% of The Full Range
Signal Output 4 – 20mA or HART or RS 485 or Modbus
Power Supply 24 V DC with Two Wires; 24 V DC or 220V AC with Four Wires
Explosion Proof Ex ia IIB T6 Ga
Typical Applications For Both Liquid Level and Solid Level Measurement in Various Industrial Fields, Especially for Water Treatment Industry
Measuring Range Standard Probe: Liquid: 1.64 ft to 65.62 ft(0.4 m to 20 m); Solid: 1.64 ft to 26.25 ft(0.4 m to 8.001 m) (liquid, 0.5 m to 20 m; solid, 0.5 m to 8 m)
Sealed and Anti-corrosive Probe: Liquid: 1.64 ft to 52.49 ft (0.4 m to 15.9 m); Solid: 1.64 ft to 26.25 ft (0.4 m to 8.001 m) (liquid, 0.5 m to 16m; solid, 0.5 m to 8m)
Probe Material PA66+GF30
Ultrasonic Frequency 28 kHz
Enclosure Protection Grade Plastic Enclosure-IP66; AL Enclosure-IP67
Signal Output 4 mA to 20 mA+HART, 24 V DC (2-wire or 4-wire); 220 V AC (4-wire)
RS 485 or MODBUS
Process Temperature -40 °F to 158 °F (-40 ℃ to +70 ℃)
