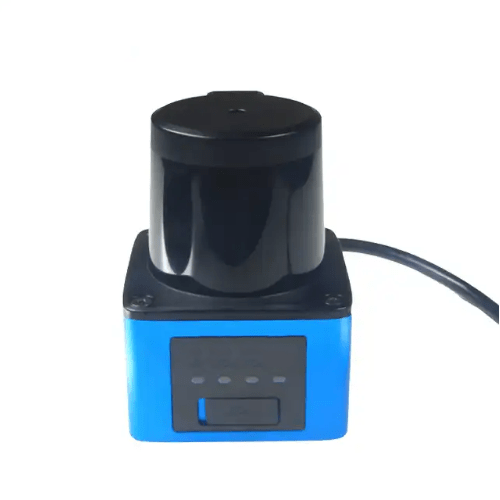

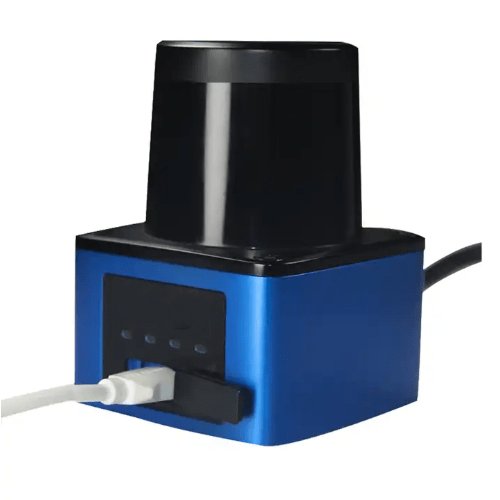

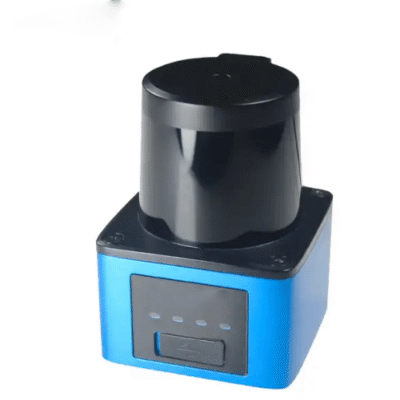

IP67 LiDAR Sensor, 0.03 ft-19.7ft Range, 270° Scanning - Asset Track Pro

Description

Waterproof	IP 67
Distance range	0.03 ft to 19.7 ft (0.01 m to 6 m)
Distance Measuring Accuracy	± 0.09 ft (±0.03 m)
Blind area	0.3 ft (0.1 m)
Laser divergence angle	12 m rad
Scanning area	270°
Angle resolution	0.2°
Supply voltage	DC 9 V to 36 V
Operating temperature	-4 °F to 140 °F (-20 °C to 60 °C)
Storage temperature	-22 °F to 158 °F (-30 °C to 70 °C)
Dimensions	2.4 in x 2.4 in x 3.2 in (62 mm x 62 mm x 82 mm)
Weight	0.46 lb (210 g)

Technical Specifications

Waterproof

IP 67

Distance range

0.03 ft to 19.7 ft (0.01 m to 6 m)

Distance Measuring Accuracy

± 0.09 ft (±0.03 m)

Blind area

0.3 ft (0.1 m)

Laser divergence angle

12 m rad

Scanning area

270°

Angle resolution

0.2°

Supply voltage

DC 9 V to 36 V

Operating temperature

-4 °F to 140 °F (-20 °C to 60 °C)

Storage temperature

-22 °F to 158 °F (-30 °C to 70 °C)

Dimensions

2.4 in x 2.4 in x 3.2 in (62 mm x 62 mm x 82 mm)

Weight

0.46 lb (210 g)
