Description
Overview

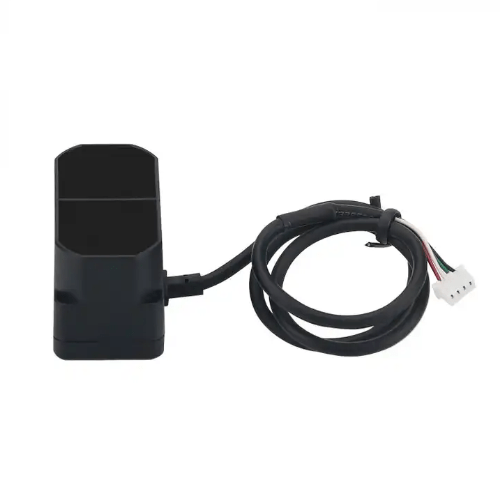

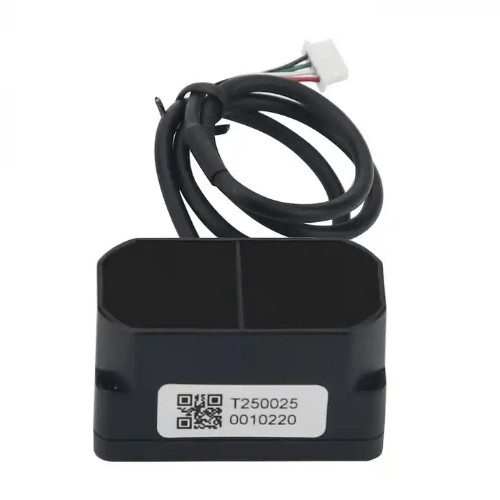

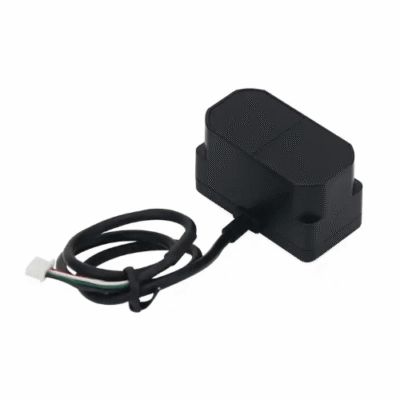

Asset Track Pro LiDAR sensor module is in the process of promoting the cost-effective LiDAR. Apart from low-cost, small-size and low-power-consumption, it also improves the frame rate, introduces IP 65 enclosures and optimizes various compensation algorithms. These new characters greatly expand the application fields and scenarios of product, which is compatible with both the UART and IIC interface. Different interfaces can be switched by commands. The product is compatible with the UART, IIC and I/O communication modes now.
Features
- Small blind zone, high frame rate, IP 65
- Small yet powerful
- Safe and stable
- Wide applications
Technical Specifications
| Operating Range | 0.33 ft to 39.37 ft (0.1 m to 12 m) |
| Blind Zone | 3.94 in (10 cm) |
| Distance Resolution | 0.2 in (5 mm) |
| Accuracy | (±1.97 in (0.33 ft to 19.69 ft), ±1% (19.69 ft to 39.37 ft))(±5 cm (0.1 m to 6 m), ±1% (6 m to 12 m)) |
| Frame Rate | 1 Hz to 1000 Hz (adjustable) |
| Ambient Light Immunity | 70 k lux |
| Central Wavelength | 850 nm |
| FOV | 3.6° |
| Enclosing Rate | IP 65 |
| Supply Voltage | 5 V ±0.5 V |
| Average Current | ≤ 110 mA |
| Storage Temperature | -4 ℉ to 167 ℉ (-20 ℃ to 75 ℃) |
| Dimension | 1.38 in x 0.83 in x 0.73 in (35 mm x 21 mm x 18.5 mm) |
| Weight | 0.02 lb (11 g) |
