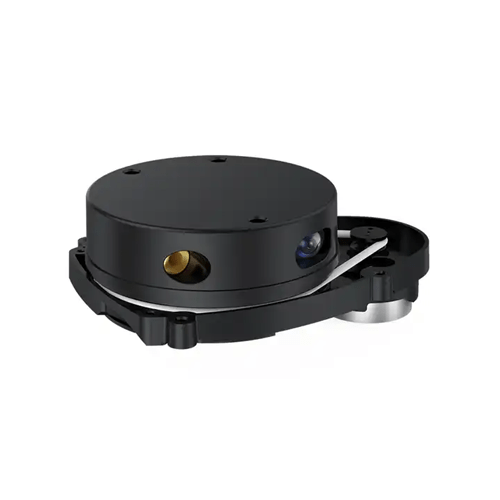

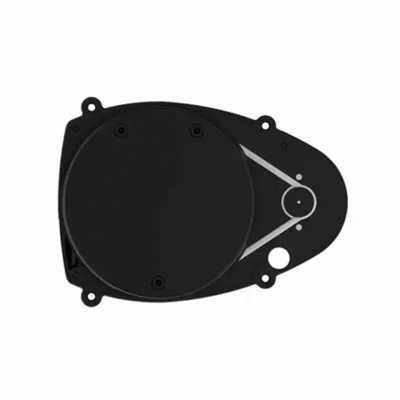

Description
Features
- Ranging Frequency 3000 Hz
- Range Distance 0.39 ft to 26.25 ft
- Angle Resolution 0.6 degree to 1.2 degree
- Scan Frequency 5 Hz to 10 Hz
- Scan Angle 360 degree, Omnidirectional
- Size 3.74 in x 2.56 in x 1.59 in
- Compliant with FDA Class 1 safety standard
- Adjustable motor frequency
Technical Specifications
| Ranging frequency | 3000 Hz, 3000 times per second |
| Scanning frequency | 5 Hz to 10 Hz, Typical 8 Hz |
| Ranging distance | 0.39 ft to 26.25 ft (0.12 m to 8 m) |
| Field of view | 0 degree to 360 degree |
| Systematic error | 0.78 in (2 cm), Distances ≤3.28 ft (1 m) |
| Relative error | Typical 1%, 3.5% 19.69 ft (6 m), 5% 26.25 ft (8 m) |
| Angle resolution | 0.6 degree (5 Hz) to 1.2 degree (10 Hz), Typical 0.96 degree (8 Hz) |
| Tilt | 0.25 degree to 1.75 degree, Typical 1 degree |
| Supply voltage | 4.8 V to 5.2 V, Typical 5 V |
| Supply current | At least 1000 mA |
| Working current | At most 500 mA, Typical 350 mA |
| Size | 3.74 in x 2.56 in x 1.59 in (95.0 mm x 65.0 mm x 40.5 mm) |
