Description
Overview

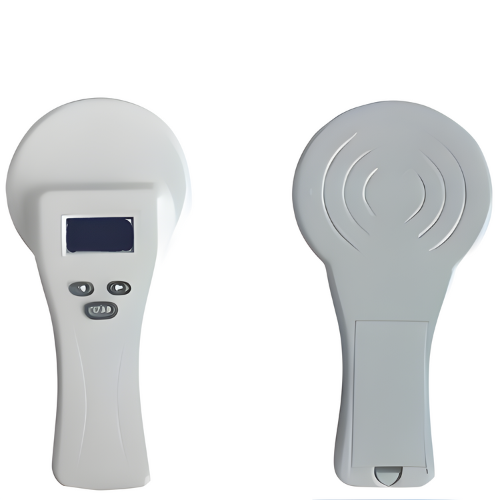

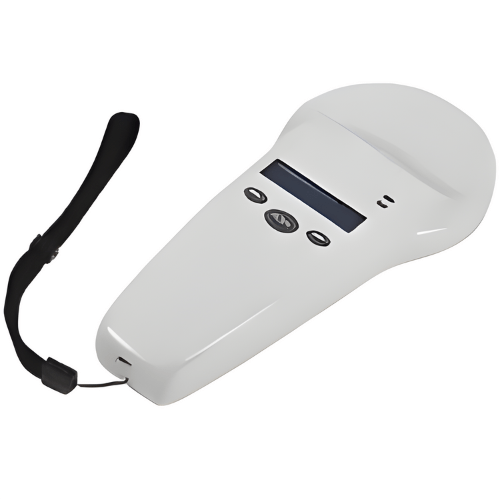

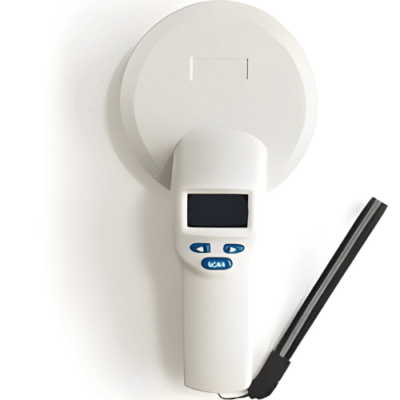

Asset Track Pro LF handheld Wireless RFID Reader can read the LF tag compliant to ISO11784 or 785FDX-A, FDX-B and HDX standard, compact design and easy to use.
Features
- Support all common ISO11784 or 11785 RFID animal tags
- Easy operation, reading with only one button
- The display comes with backlight for easy reading in dark environment
- Big memory to in store up to 8000 pcs ID number data
- Directly read the history data under internal reading mode
- Low battery alarm function when battery power is lower than 7.8 V
- Optional output interface for external antenna
- Standard USB interfaces to connect with computer for data uploading
- Color options White, Black
- Bluetooth not standard, optional
Technical Specifications
| CPU | ARM (STM 32) |
| Working frequency | 134.2 KHz |
| Screen | 128 x 32 OLED |
| System clock | Built-in |
| Buzzer | Built-in |
| Data storage | 7000 records |
| Power supply | Rechargeable lithium battery |
| Communication mode | Bluetooth & USB |
| Continuous working time | 12 hours |
| Storage temperature | -22 °F to 149 °F (-30 °C to 65 °C) |
| Operation temperature | -22 °F to 122 °F (-30 °C to 50 °C) |
| Operation humidity | 5 % to 90 % |
| Color | White grey |
| Button number | 3 |
| Indicator light | Yellow, green |
| Reading standard | ISO11784 or ISO11785 FDX-B, HDX, ID64 |
| Operation language | Chinese version (simplified Chinese, traditional Chinese, English) |
| Central Asia version (Kazakh, Russian, Mongol, English) | |
| European version (French, German, Spanish, Portuguese, Dutch, Danish, English) | |
| International certification | CE, Rohs |
| Reading head | One-dimensional bar code reading head (optional) |

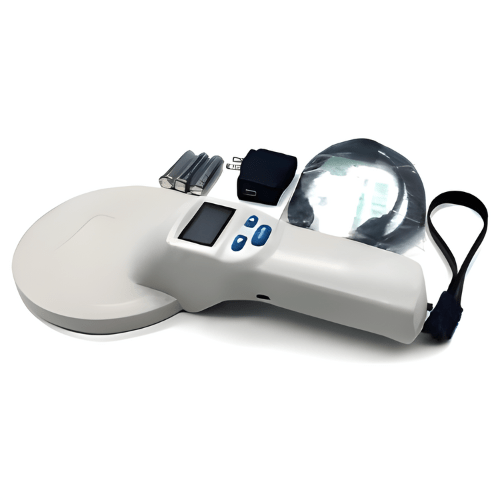

| Accessories | Packing box, charger kit, a standby battery |
| Reading distance | FDX-B 6.69 in (17 cm), microchip 3.54 in (9 cm), HDX 7.87 in (20 cm) |
