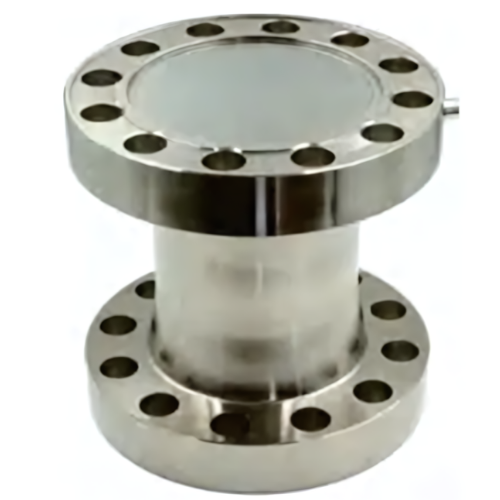

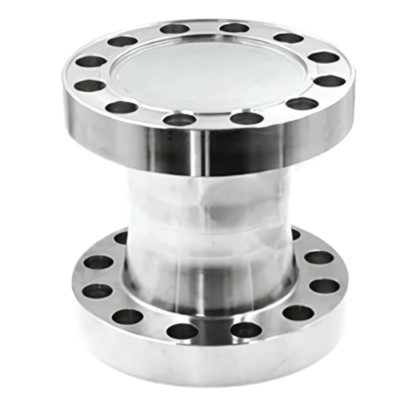

Description
Features
- Suitable for auto press, robotics, and medical applications
- Available in capacities from 10T to 800T
- Made from durable stainless steel
- Includes a 6-meter cable for flexible installation
- Provides consistent accuracy with low hysteresis and non-linearity
- Designed to handle overloads up to 200% of the full scale
Technical Specifications
| Capacity | 10 t, 20 t, 30 t, 50 t, 60 t, 100 t, 200 t, 300 t, 400 t, 500 t, 600 t, 800 t |
| Rated Output | 1.5 ± 1 % mV/V |
| Zero Balance | ± 1 % F.S. |
| Non-Linearity | 0.1 % F.S. |
| Hysteresis | 0.1 % F.S. |
| Repeatability | 0.1 % F.S. |
| Creep(30min) | 0.05 % F.S. |
| Input Impedance | 780 ± 20 Ω |
| Output Impedance | 700 ± 10 Ω |
| Insulation | ≥ 5000 M Ω / 100 VDC |
| Recommended Excitation | 5V to 15 V |
| Maximum Excitation | 20 V |
| Safe Overload | 150 % F.S. |
| Ultimate Overload | 200 % F.S. |
| Material | stainless steel |
| Temp.Effect On Output | 0.05 % F.S. / 50 °F (10 ℃) |
| Temp.Effect On Zero | 0.05 % F.S. / 50°F (10 ℃) |
| Compensated Temp Range | 14 °F to 104 °F (-10 °C to 40 °C) |
| Operation Temp Range | 14 °F to 158 °F (-10 °C to 70 °C) |
| Cable Size | φ5 × 236.22 in (600 cm) |
| Weight Approx | 11 lb (5 kg) |
