Description
Features

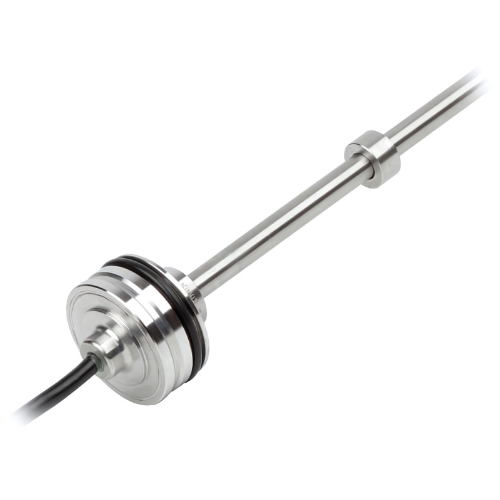

- Compact structure, built-in cylinder installation
- Robust and reliable, oil and dirt resistant
- Linear measurement, absolute value output
- Non-contact design, no wear
- High precision and high resolution
Technical Specifications
| Supply Voltage | 24 VDC |
| Working Current | < 70 mA |
| Overpressure Protection | 33 VDC max |
| Resolution | 16-bit D / A |
| Nonlinearity | ± 0.1 % FS, ± 0.05 % FS |
| Repeatability | ± 0.008 % FS |
| Working Temperature | -40 °F to 185 °F (-40 |
| Storage Temperature | -40 °F to 212 °F (-40 |
