Description
Overview

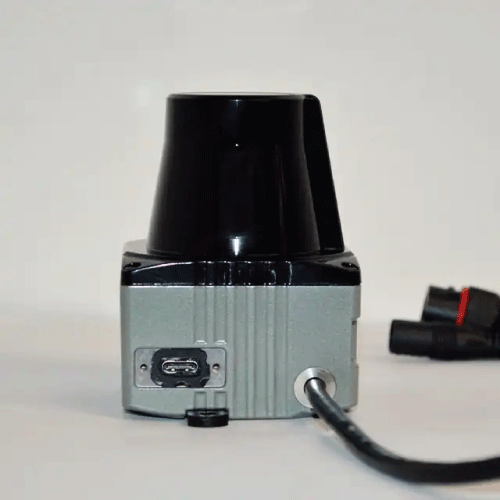

Asset Track Pro mobile LiDAR sensor is a single line lidar developed for medium and low-speed scenarios. The industrial design is exquisite and compact, making the product small in size, light in weight, and high in performance. It supports ultra-high frequency sampling and optional angular resolution and achieves zero blind spots within the detection range.
Features
- High cost performance
- Long life
- High stability and consistency
- Small size and low power consumption
- Point frequency high
- Independent and contollable core technology
- Productivity efficiency
- Easy to pass the automotive grade
Technical Specifications

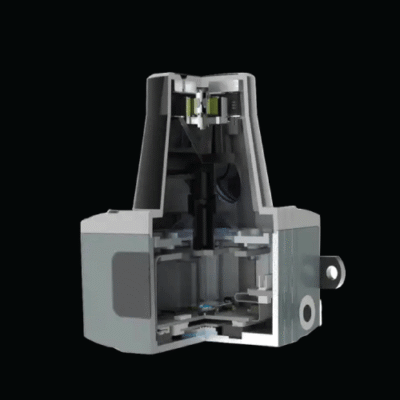

| Scanning Principle | Mechanical Rotation |
| Range Principle | TOF |
| Horizontal FOV | 270° |
| Distance Resolution | 1 cm |
| Horizontal Resolution and Rotating Frequency | 0.2° (10 Hz), 0.5° (20 Hz） |
| Data Sample Rate | 18 kHz (10 Hz) and 14.4 kHz (20 Hz) |
| Range Accuracy | ±0.787 in (±2 cm) |
| Environmental Protection | IP 65 |
| Operating Voltage | 6 V to 36 V |
| Power Consumption | ≤2.5 W |
| Wavelength | 940 nm |
| Operating Temperature | -13 °F to 140 °F (-25 °C to 60° C) |
| Storage Temperature | -40 °F to 167 °F (-40 °C to 75 °C) |
| Dimension | 2.36 in x 2.36 in x 3.14 in (60 mm x 60 mm x 80 mm) |
| Weight | 0.35 lb (160 g) |
