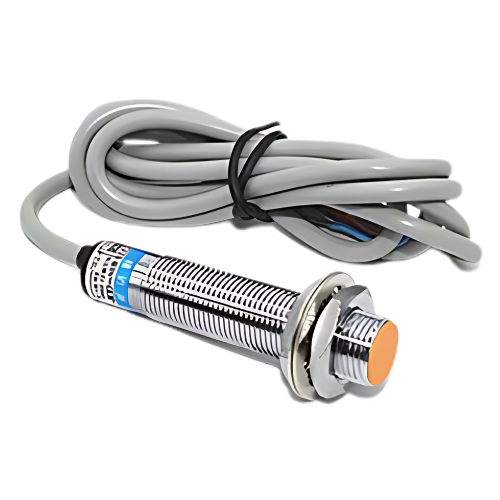

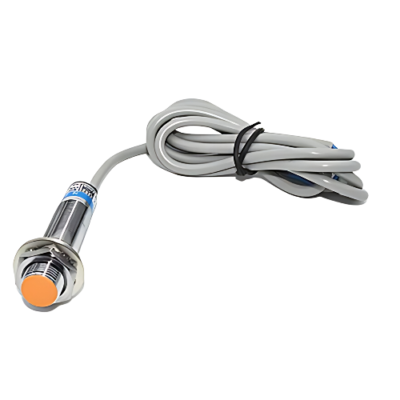

Description
Technical Specifications
| Lag Distance | Less than 10 % of the detection distance |
| Detecting Objects | Magnetic metal (detection distance is reduced when non-magnetic metal) |
| Response Frequency | DC: 0.5 kHz AC: 25 Hz |
| Voltage | DC type: DC 12 V to 24 V (6 V to 36 V) pulsation (P-P) below 10% AC type: AC 110 V to 220 V (36 V to 250 V) 50 Hz / 60 Hz |
| Withstand Voltage | AC 1000 V 50 Hz / 60 Hz 1 min between the charging part and the outer casing |
| Voltage Effect | Rated power supply voltage range within ± 15 %, rated power supply voltage value within ± 10 % detection distance |
| Current Consumption | N.P type : ≤ 13 mA D type : ≤ 0.8 mA A type : ≤ 1.7 mA |
| Control Output | N.P type : ≤ 300 mA D type : ≤ 200 mA A type : ≤ 400 mA |
| Loop Protection | N.P.D type: reverse connection protection, surge absorption, load short circuit protection Type A: surge absorption |
| Insulation Resistance | ≥ 500 MΩ (DC 500 V) between the charging part and the outer casing |
| Material | Housing: Brass nickel-plated Detection surface: ABS |
| Protective Structure | IP67 (IEC specification) |
| Ambient Temperature and Humidity | During operation: -22 °F to +149 °F (-30 °C to +65 °C) During storage: 35 % RH to 95 % RH |
| Temperature Effect | Temperature range -22 °F to +149 °F (-30 °C to +65 °C), +73 °F (+23 °C), ± 15 % detection distance Temperature range -13 °F to +140 °F (-25 °C to +60 °C), +73 °F (+23 °C), ± 10 % detection distance |
| Detection Distance | 0.08 in ± 10% (2 mm ± 10%) 0.16 in ± 10% (4 mm ± 10%) |
| Set Distance | 0 in to 0.06 in (0 mm to 1.6 mm) 0 in to 0.14 in (0 mm to 3.6 mm) |
| Standard Inspection Object | Iron 0.47 in x 0.47 in x 0.04 in (12 mm x 12 mm x 1 mm) Iron 0.59 in x 0.47 in x 0.04 in (15 mm x 12 mm x 1 mm) |
