Description
Overview

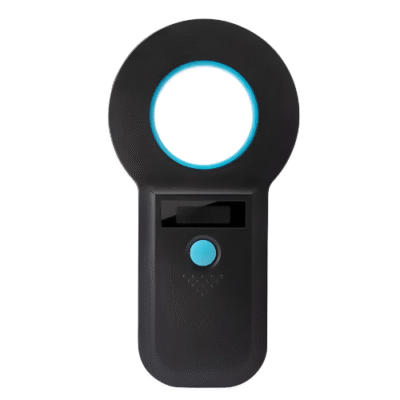

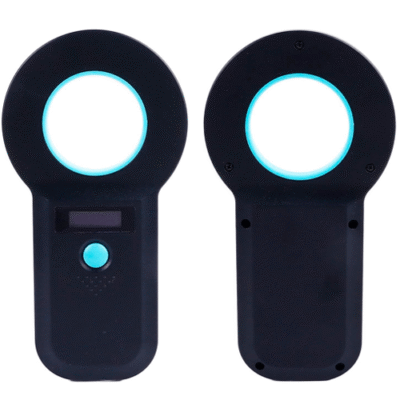

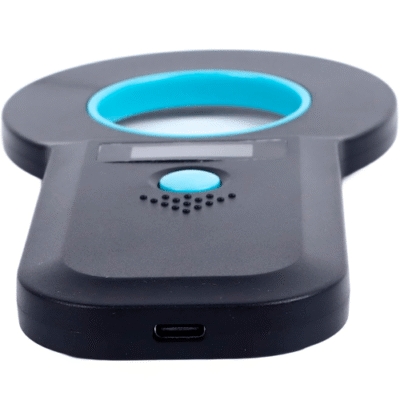

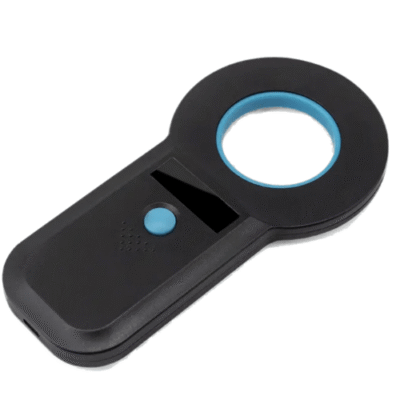

Asset Track Pro New Black Rfid Animal Tag Microchip Reader ISO Chip OLED Pet Dog Scanner for Glass is a low frequency tag scanner that adopt wireless identification technology and it suppors reading EMID, FDX-B (ISO11784 or ISO11785) etc. tag. This scanner uses high brightness OLED display which can be seen clearly in bright light environment. It can store max 128 records of tag information with its built-in memory, users can upload the information to the computer through USB cable.It can also be uploaded to the device in real time via wireless 2.4G or Bluetooth. This product is stable with simple operation which is widely used for little animal management, resource management, railway inspection etc.
Technical Specifications
| Frequency | 134.2 KHZ or 125 KHZ |
| Protocol | ISO11784 or ISO11785 |
| Size | 4.92 in x 2.56 in x 0.47 in (125 mm x 65 mm x 12 mm) |
| Continuous Working Hours | 5 hours |
| Reading Distance | Ear tag: 3.94 in (10 cm) Microchip: 1.97 in (5 cm) |
| Identification Method | Read only |
| Certification | Ce |
| Support Tag | EMID, FDX-B (ISO11784 or ISO11785) |
| Reading Or Writing Range | 0.08 in (2 mm) to 0.47 in (12 mm) glass tube label more than 3.15 in (8 cm) 1.18 in (30 mm) animal ear mark more than 7.87 in (20 cm) (related to label performance) |
| Reading Time | 100 ms |
| Prompt | 0.91 in high brightness OLED screen, buzzer |
| Power Supply | 3.7 V (lithium battery) |
| Memory | 128 pieces of information |
| Communication | USB 2.0, Wireless 2.4 g, Bluetooth |
| Language | English or customized |
| Working Temperature | 14 °F to 122 °F (-10 ᵒC to 50 ᵒC) |
| Weight | 6.34 oz (180 g) |
