Description
Overview

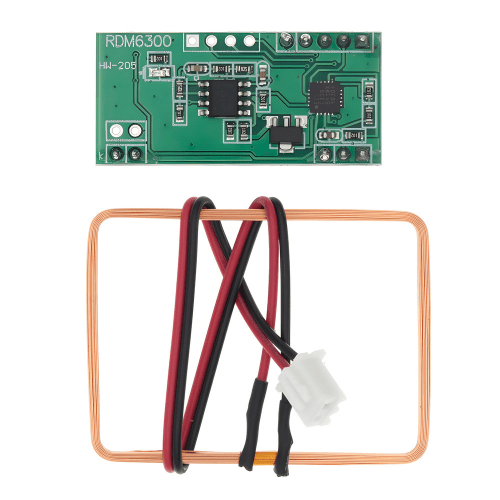

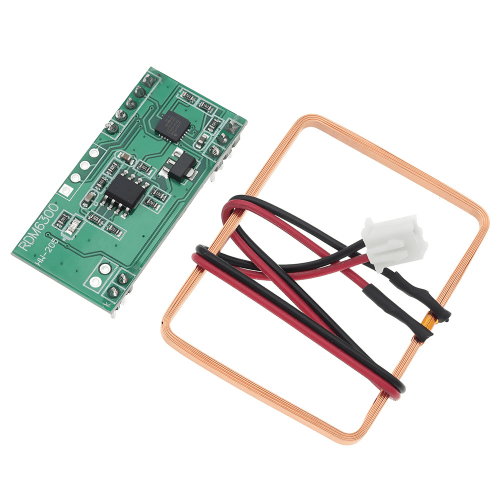

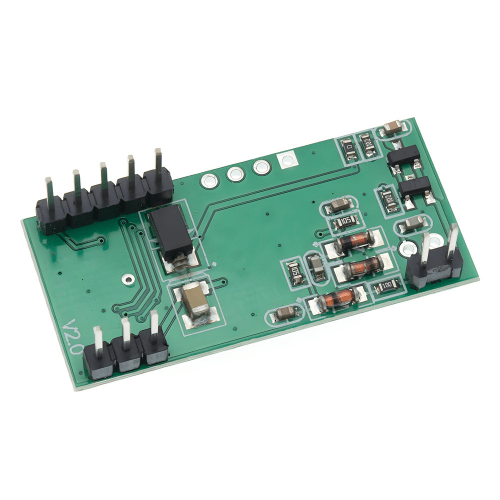

Asset Track Pro RFID Output access control module is convenient to use, the power supply serial connection after for motherboard, when RFID card to enter the card read range, module will be through the UART the card number directly send for Receiver sensitivity, high operating current, high stability Suitable for access control, time and attendance, charges, anti-theft, Patrol and other radio frequency identification applications.
Technical Specifications
| Frequency | 125 KHz |
| Baud Rate | 9600 |
| Interface | TTL Level RS 232 format |
| Working Voltage | DC 5 V (+ or -5 %) |
| Working Current | <50 mA |
| Receive Distance | 0.79 in to 1.97 in (20 mm to 50 mm) |
| Max Humidity | 0 RH to 95 % RH |
| Storage Temperature | -4 °F to 176 °F (-20 °C to + 80 °C) |
| Working Temperature | -14 °F to 158 °F (-10 °C to + 70 °C) |
| Working Size | 1.81 in X 1.26 in X 0.12 in (46 mm X 32 mm X 3 mm) |
| Module Size | 1.52 in X 0.75 in X 0.35 in (38.5 mm X 19 mm X 9 mm) |
