Description
Overview

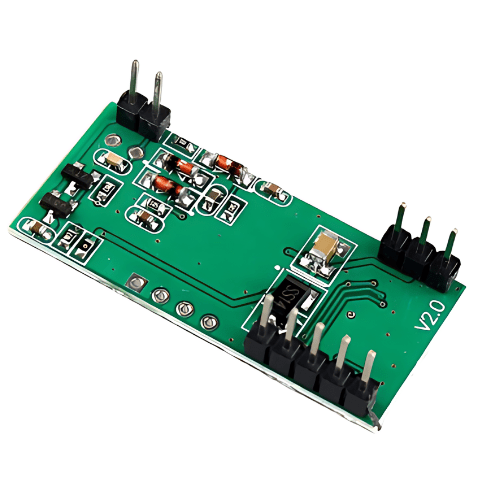

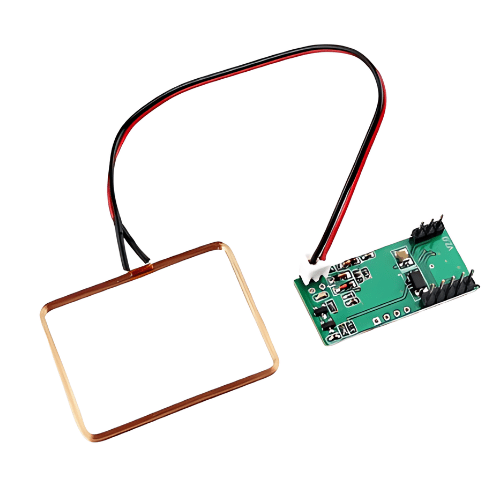

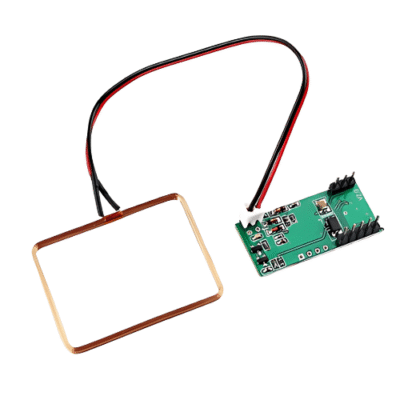

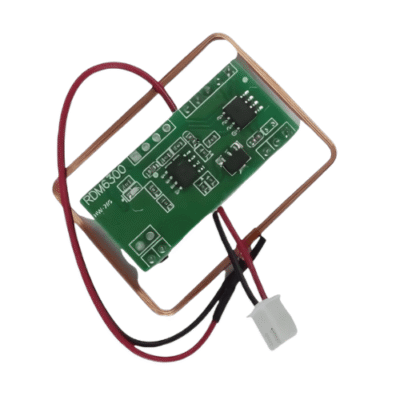

Asset Track Pro card id RFID reader technology module is designed for reading code from 125 KHz card compatible read-only tags and read or write the card. It can be applied in office or home security, personal identification, access control, anti-forgery, interactive toy and production control systems etc.
Features
- Maximum effective distance up to 5.90 in (150 mm)
- Less than 100 ms decoding time

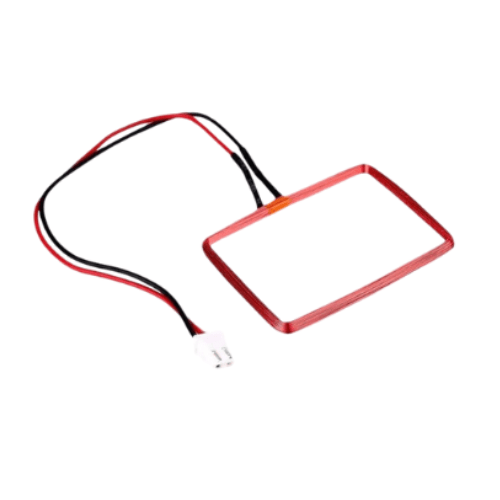

- Support external antenna
- Uart interface
- Support EM 4100 compatible read-only or read or write tags
- Small outline design
Technical Specifications
| Frequency | 125 KHz |
| Working Voltage | DC 5 V (+ or -5%) |
| Baud Rate | 9600 |
| Interface Type | TTL level RS 232 |
| Working Current | <50 mA |
| Receive Distance | 0.78 in to 1.96 in (20 mm to 50 mm) |
| Humidity | 0 % RH to 95 % RH |
| Maximum Effective Distance | Up to 5.90 in (150 mm) |
| decoding Time | Less than 100 ms |
| Operating Temperature | 14 °F to 158 °F (-10 °C to + 70 °C) |
| Storage Temperature | -4 °F to 176 °F (-20 °C to + 80 °C) |
| Wiring Size | 1.81 in X 1.25 in X 0.11 in (46 mm X 32 mm X 3 mm) |
| PCB Size | 1.51 in X 0.78 in (38.5 mm X 20 mm) |
| Weight | 0.24 oz (7 g) |
