Description
Overview

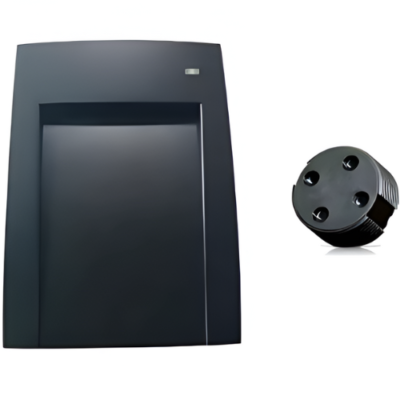

Asset Track Pro RFID Reader is a compact, low frequency (LF) read/write device for ranges up to 60 mm. It is compatible with ISO11784/85. Thanks to its compact design and internal antenna, it is a cost-effective and flexible solution for animal identification. Integrated signal and data processing ensure extremely high identification process speeds.
Features
- 125KHz or 134.2KHz RFID write/read device for ranges up to 60 mm.
- Transponder communication according to ISO11784/85 standard.
- Compact, industrial design with internal antenna.
- Embedded protocols allow interfacing with standard industrial fieldbus technologies.
- Powerful micro-processor executes internally configurable logic.
- Flexible trigger control.
- Built-in diagnostics.
Technical Specifications
| Attribute | Details |
| Frequency | 125 kHz, 134.2 kHz |
| Standard | ISO11784/5 |
| Support IC | FDX-B, EMID, T5577, EM4305, tag S, etc. |
| Input / Output | LCD display, sensor input TTL, buzzer |
| Communication Interface | USB COM-Port |
| Reading Distance | Up to 10 cm (according to tag types and application environment) |
| Power Supply | USB charging (USB interface) |
| Material | Plastic |
| Features | Purse functionality |
| Operating Temperature | 14 °F to 131 °F (- 10 °C to + 55 °C) |
| Size | 5.91 in × 3.15 in × 0.98 in (15 cm × 8 cm × 2.5 cm) |
