Description
Overview

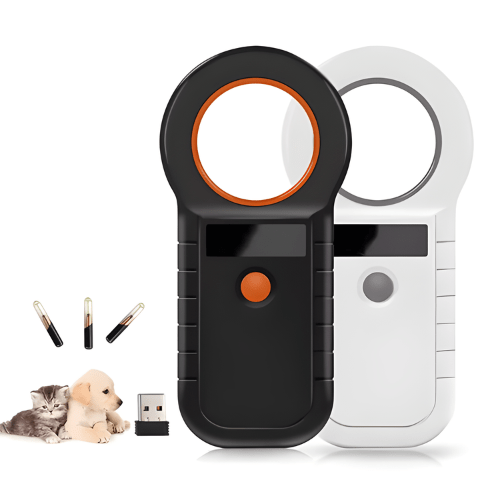

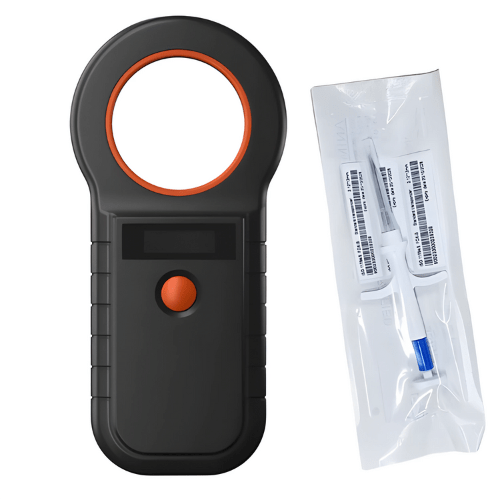

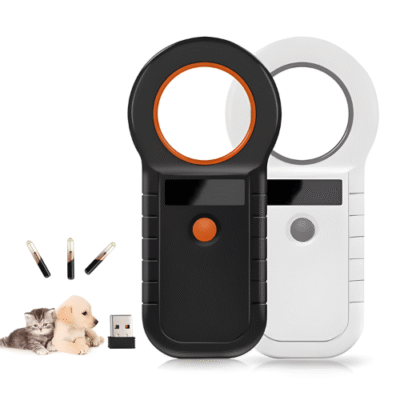

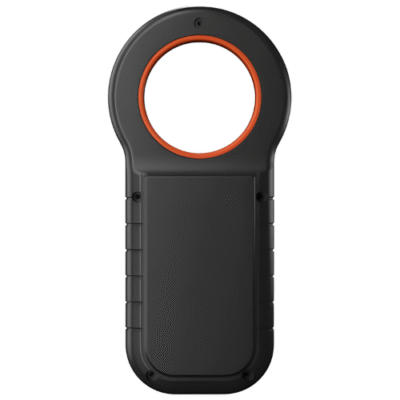

Asset Track Pro 134.2khz Glass Tag Microchip Animal Reader for Pet is a low-frequency tag scanner that adopts wireless identification technology, and it supports reading EMID, FDX-B (ISO 11784 or 85), etc. tag. It uses a high brightness OLED display which can be seen clearly in a bright light environment. It can store max 128 records of tag information with its built-in memory, users can upload the information to the computer through a USB cable. It can also be uploaded to the device in real time via wireless 2.4 G or Bluetooth.
Technical Specifications
| Project | Parameter |
| working frequency | 134.2 KHz or 125 KHz |
| Protocol | ISO11784 or 11785 FDX-B |
| Color | White + Blue |
| Reading or writing range |
0.2 cm to 1.2 cm (2 mm to 12 mm) glass tube label ＞3.15 in (8 cm) 3 cm (30 mm) animal ear mark ＞7.87 in (20 cm) (Related to label performance) |
| Standard | ISO11784 or 85 |
| Reading time | ＜100ms |
| Prompt | 0.91 “high brightness OLED screen, buzzer |
| Power supply | 800 mAh 3.7 V (lithium battery) |
| Memory | 128 pieces of information |
| Communication | USB 2.0, Wireless 2.4 g, Bluetooth (optional) |
| Language | English or customized |
| Working temp | 14 °F to 122 °F (-10 ℃ to 50 ℃) |
| Storage temp | -22 °F to 158 °F (-30 ℃ to 70 ℃) |
| Product size | 6.1 in x 2.9 in x 0.6 in (155 mm x 74 mm x 15 mm) |
| Material | Plastic |
