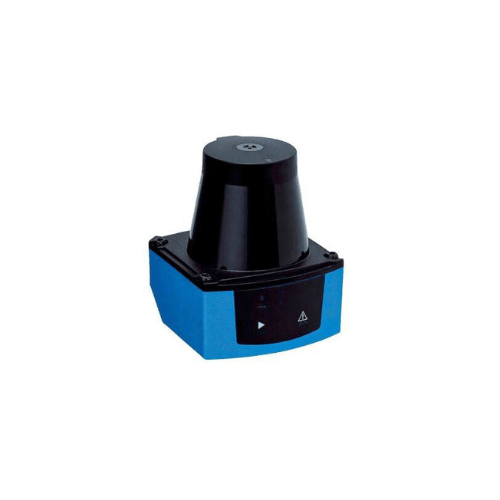

Short Range 2D LiDAR Sensor, 25m Range, 0.33° Resolution, IP67 - Asset Track Pro

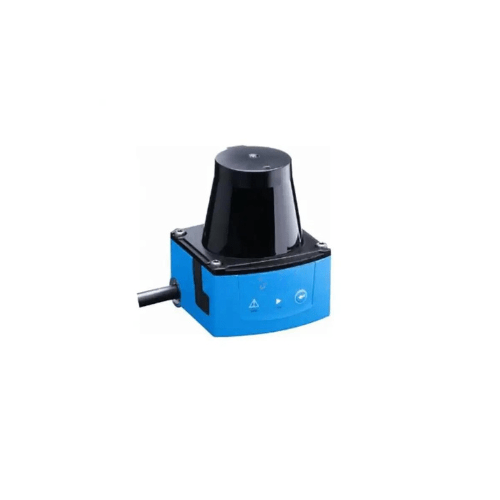

Short Range 2D LiDAR Sensor, 25m Range, 0.33° Resolution, IP67 - Asset Track Pro - Image 2
Short Range 2D LiDAR Sensor, 25m Range, 0.33° Resolution, IP67 - Asset Track Pro - Image 3

Short Range 2D LiDAR Sensor, 25m Range, 0.33° Resolution, IP67 – Asset Track Pro

The Short Range 2D LiDAR Sensor features HDDM+ technology and a pulse power of up to 880 mW with a 5 ns pulse width, it ensures high performance.

SKU: ATPLDS-226 Category:

Description

Technical Specifications

Device name Short range 2D LiDAR sensor
Device type App Space
Performed by 25 m measuring range, 0.33° resolution, performance professional, HDDM+
Housing IP 67 without heating, Programmable
Connection 21 Rotating connection unit, 1 of M12 male connector, 12 pin, D coded (Power + I or 0); 1 of M12 female connector, 4 pin, A coded (Ethernet)
Application App Space standard
Laser type Pulse power up to 880 mW, pulse width up to 5 ns, pulse rate 1,500 kHz
