Short Range RFID Reader Module 125KHz EM/TK with External Antenna – Asset Track Pro

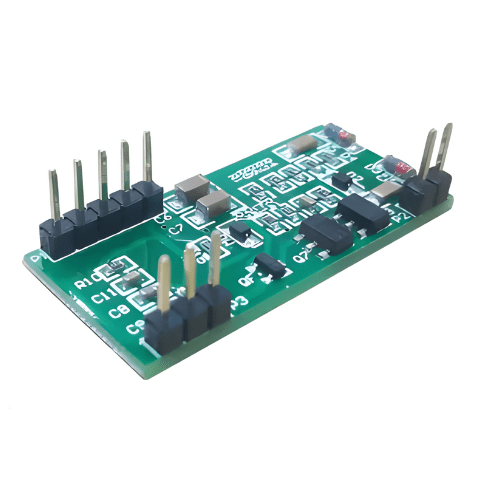

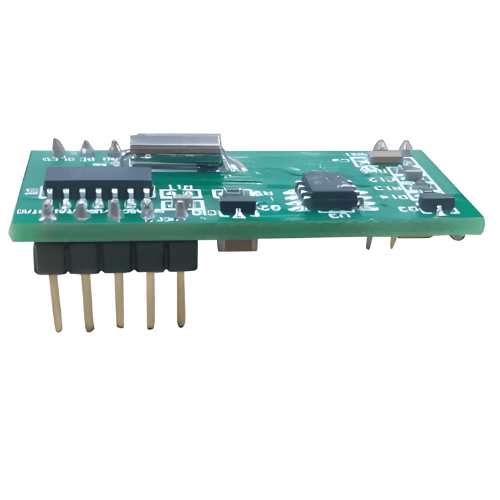

RF125-EM is a 125 KHz RFID reader module with an external antenna, operating on DC 3.3V. Supports EM 4100/TK 4100 & EM 4200 cards for versatile applications.

SKU: ATPLMOD-152 Category:

Technical Specifications

Frequency 125 KHz
Supporting Card EM 4100 or TK 4100 and EM 4200
Antenna External
Interface Weigang26, TTL, RS232
Power Voltage DC 3.3 V
Reading Distance 3.14 in (8 cm)
Operating Temperature 14 °F to 158 °F (-10 °C to 70 °C)
Dimension 1.53 in x 0.74 in x 0.35 in
(39 mm x 19 mm x 9 mm)
Weight 1.76 oz (49 g)
