Description
Overview

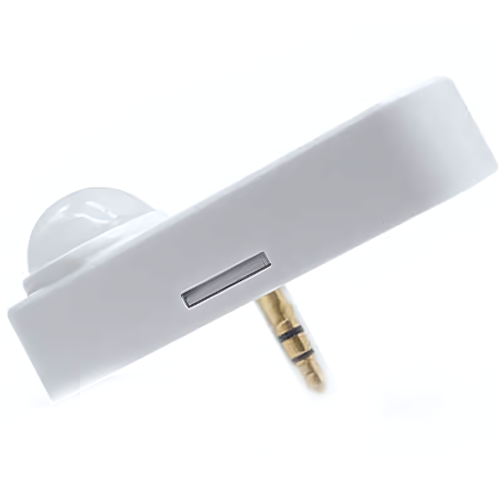

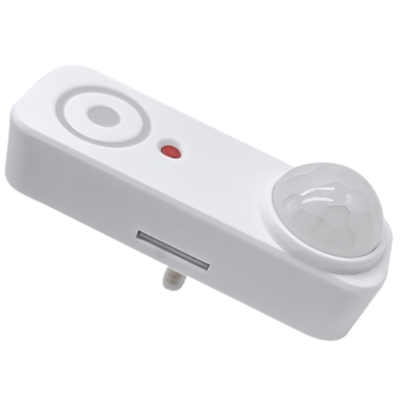

Asset Track Pro Smart Sense CCT App-Control Infrared & PIR Motion Position Sensor System is composed of 12 to 24 V DC input, 0 to 10 V dimming, constant flux, Bluetooth mesh, CCT tunable white PIR motion sensor by Silver Bluetooth mesh APP control.
Features
- Dimming, task tuning (10 to 100%)
- Audio jack connection, easy plug & play
- Dual channel to achieve TUNABLE WHITE control
- 0 to 10 V channel 1(Dim+) to adjust brightness
- 0 to 10 V channel 2(CCT+) to adjust color temperature
- Super compact, ideal for office and commercial lighting
- RoHS compliant
Technical Specifications
| Output Configuration | 0 V to 10 V dimming and constant flux, CCT function |
| Sensing Range | max. 6 in diameter |
| Function | tri-level dimming and constant flux, CCT tunable, Bluetooth mesh PIR motion detection, SILVAIR Bluetooth mesh app |
| Input Voltage | 12 V DC to 24 V DC |
| Mounting Height | 157.47 in (400 cm) max. |
| Size or Dimension | 2.36 in x 0.83 in x 0.89 in (6 cm x 2.1 cm x 2.27 cm) |
| Operation Temperature | 14 °F to 122 °F (-10 ℃ to + 50 ℃). |
